Description
General part information

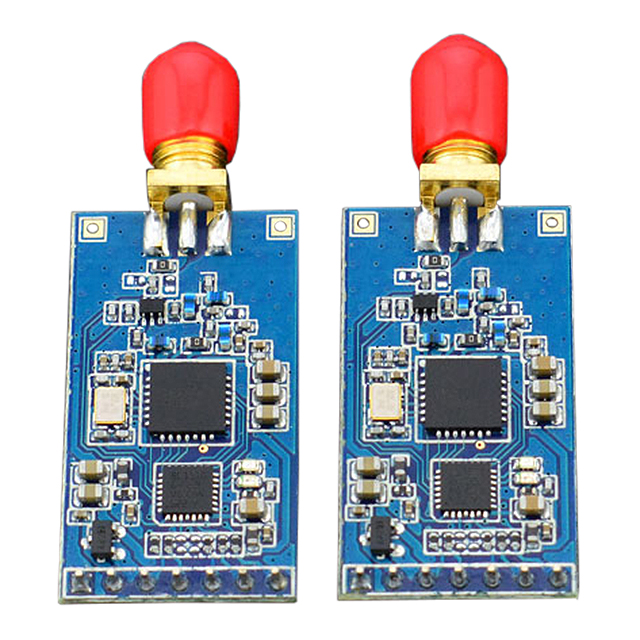

TEL0116
LoRa™ Transceiver Module 433MHz Antenna Not Included, SMA Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | TEL0116 |
|---|---|
| Antenna Type | Antenna Not Included, SMA |
| Current - Receiving | 15.2 mA |
| Current - Transmitting | 120 mA |
| Data Rate | 9.6 kBaud |
| Frequency | 433 MHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 7-SIP Module |
| Power - Output | 20 dBm |
| Protocol | LoRa™ |
| Sensitivity | -137 dBm |
| Serial Interfaces | Serial TTL |
| Utilized IC / Part | SX1276 |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 3.4 V |
