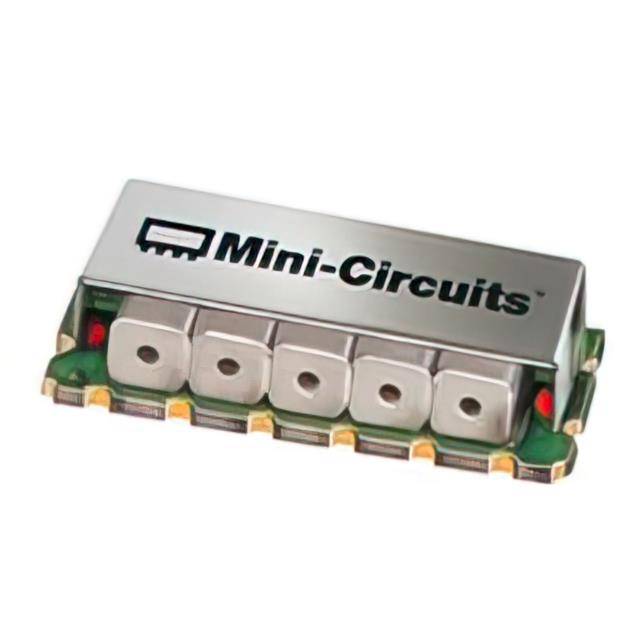

CSBP-A940+
ActiveMini-Circuits
RF FILTER BAND PASS 940MHZ 16SMD
CSBP-A940+
ActiveMini-Circuits
RF FILTER BAND PASS 940MHZ 16SMD
Description
General part information
CSBP-A940+
940MHz Center Frequency Band Pass RF Filter (Radio Frequency) 120MHz Bandwidth 2dB 16-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CSBP-A940+ |
|---|---|
| Bandwidth | 120 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 940 MHz |
| Height (Max) | 0.225 in |
| Insertion Loss | 2 dB |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD, No Lead |
| Size / Dimension Length | 1.04 in |
| Size / Dimension Width | 0.55 in |
