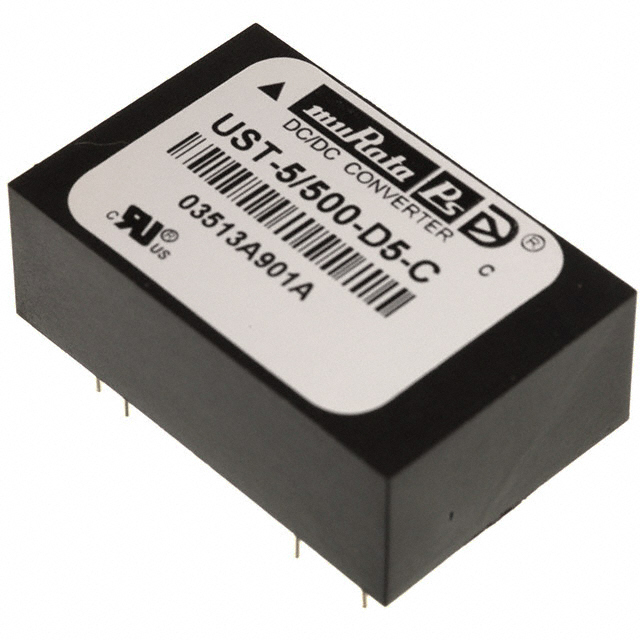

UST-5/500-D5-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UST-5/500-D5-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UST-5/500-D5-C | UST-5 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA | 500 mA |
| Efficiency | 74 % | 74 - 75 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 75 ░C | 75 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-DIP Module | 8-DIP Module |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 1.25 " | 1.25 " |
| Size / Dimension [x] | 31.8 mm | 31.8 mm |
| Size / Dimension [y] | 0.8 in | 0.8 in |
| Size / Dimension [y] | 20.3 mm | 20.3 mm |
| Size / Dimension [z] | 0.45 " | 0.45 " |
| Size / Dimension [z] | 11.4 mm | 11.4 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V | 9 - 72 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 - 18 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UST-5 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 2.5 W, 1 OUTPUT, 5 V
| Part | Voltage - Input (Max) [Max] | Type | Package / Case | Voltage - Output 1 | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Current - Output (Max) [Max] | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Voltage - Input (Min) [Min] | Efficiency | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UST-5/500-D12-C | 18 V | Isolated Module | 8-DIP Module | 5 V | ITE (Commercial) | -40 °C | 75 ░C | 1 | 500 mA | 3 W | 0.8 in | 1.25 " | 0.45 " | 11.4 mm | 31.8 mm | 20.3 mm | Through Hole | 9 V | 74 % | 1000 V |
Murata Power Solutions Inc. UST-5/500-D12-C | ||||||||||||||||||||
Murata Power Solutions Inc. UST-5/500-D48-C | 72 V | Isolated Module | 8-DIP Module | 5 V | ITE (Commercial) | -40 °C | 75 ░C | 1 | 500 mA | 3 W | 0.8 in | 1.25 " | 0.45 " | 11.4 mm | 31.8 mm | 20.3 mm | Through Hole | 18 V | 75 % | 1000 V |
Murata Power Solutions Inc. UST-5/500-D5-C | 9 V | Isolated Module | 8-DIP Module | 5 V | ITE (Commercial) | -40 °C | 75 ░C | 1 | 500 mA | 3 W | 0.8 in | 1.25 " | 0.45 " | 11.4 mm | 31.8 mm | 20.3 mm | Through Hole | 4.5 V | 74 % | 1000 V |
Murata Power Solutions Inc. UST-5/500-D48-C |
Description
General part information
UST-5 Series
Isolated Module DC DC Converter 1 Output 5V 500mA 4.5V - 9V Input
