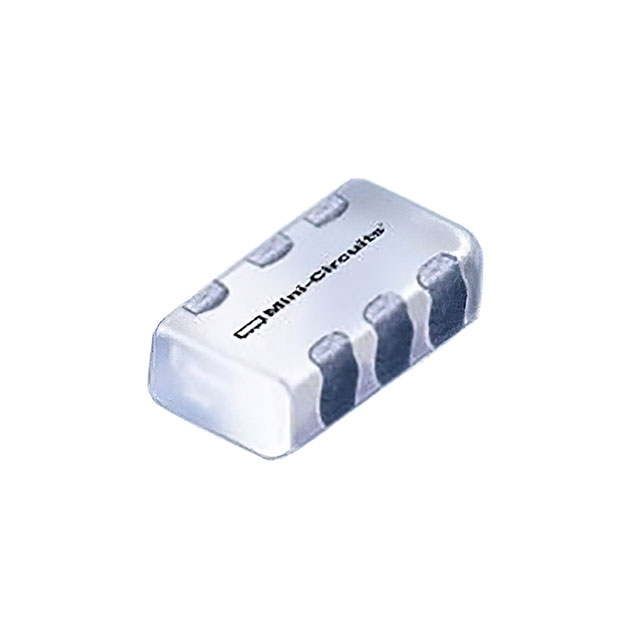

NCS1-112+
ActiveMini-Circuits
1:1 LTCC TRANSFORMER, 700 - 1100
NCS1-112+
ActiveMini-Circuits
1:1 LTCC TRANSFORMER, 700 - 1100
Description
General part information
NCS1-112+
RF Balun 700MHz ~ 1.1GHz 50 / 50Ohm 0805 (2012 Metric), 6 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | NCS1-112+ |
|---|---|
| Frequency Range (Max) | 1.1 GHz |
| Frequency Range (Min) | 700 MHz |
| Impedance - Balanced | 50 Ohm |
| Impedance - Unbalanced | 50 Ohm |
| Insertion Loss (Max) | 1.2 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 6 PC Pad |
| Phase Difference | 13 ° |
| Return Loss (Min) | 10.1 dB |
