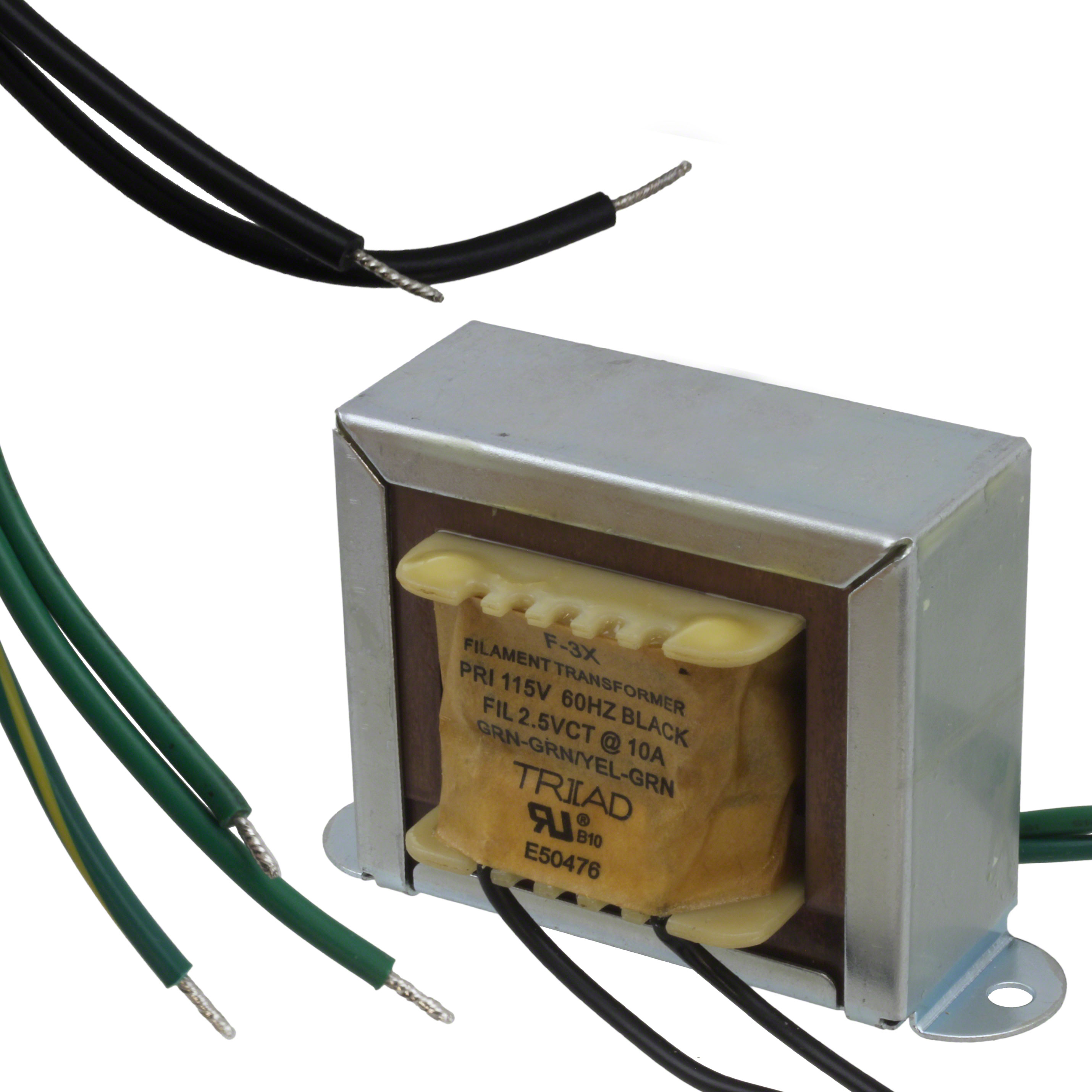

F-3X
ActiveTriad Magnetics
CHASSIS MOUNT TRANSFORMER, ISOLATING, 115V, 2.5V, 25 VA, 60HZ, SINGLE PRIMARY, SINGLE SECONDARY
F-3X
ActiveTriad Magnetics
CHASSIS MOUNT TRANSFORMER, ISOLATING, 115V, 2.5V, 25 VA, 60HZ, SINGLE PRIMARY, SINGLE SECONDARY
Description
General part information
F-3X
CHASSIS MOUNT TRANSFORMER, ISOLATING, 115V, 2.5V, 25 VA, 60HZ, SINGLE PRIMARY, SINGLE SECONDARY
Technical Specifications
Parameters and characteristics for this part
| Specification | F-3X |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 10 A |
| Height - Seated (Max) | 57.94 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 25 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 95.25 mm |
| Size / Dimension Width | 53.97 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 3 kV |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 2.5 V |
| Weight | 1.7 lbs |
