Description
General part information
SP-35501-OM

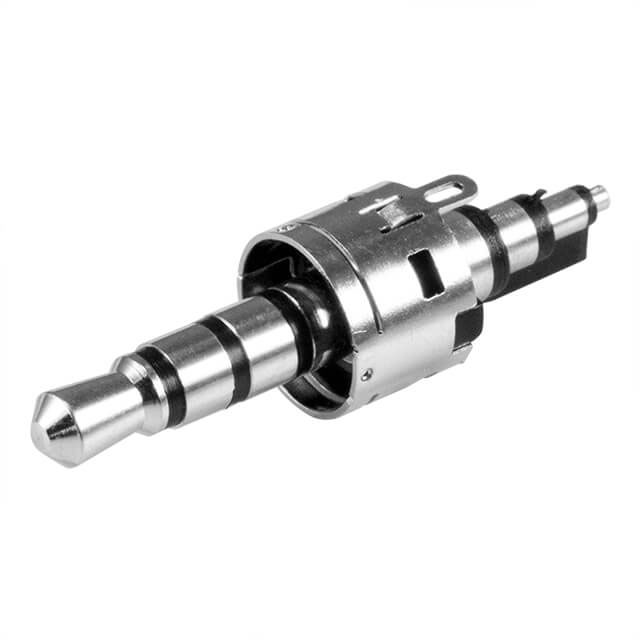

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug 5 Conductor (TRRRS) Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-35501-OM |
|---|---|
| Actual Diameter | 0.126 in |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Current Rating | 1 A |
| Gender | Male |
| Industry Recognized Mating Diameter (Headphone - Mini Plug) | 3.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Mini Plug |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.472 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 5 Conductors |
| Number of Contacts | 5 Contacts |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Signal Lines | TRRRS |
| Signal Lines (Count) | 5 Conductor |
| Termination | Solder |
| Voltage - Rated | 12 VAC |
