B57541G0502H000
ObsoleteEPCOS - TDK Electronics
THERMISTOR NTC 5KOHM BEAD
B57541G0502H000
ObsoleteEPCOS - TDK Electronics
THERMISTOR NTC 5KOHM BEAD
Description
General part information
B57541G0502H000

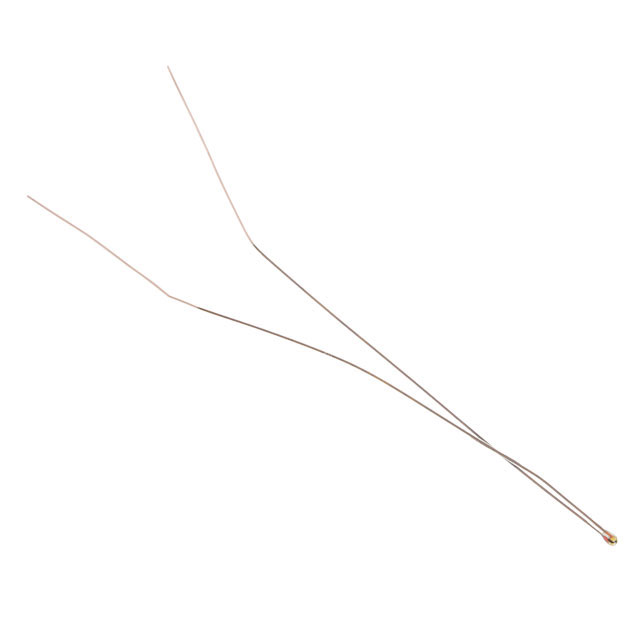

NTC Thermistor 5k Bead, Glass
Technical Specifications
Parameters and characteristics for this part
| Specification | B57541G0502H000 |
|---|---|
| B Value Tolerance | 1 % |
| Grade | Automotive |
| Length - Lead Wire | 0.85 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bead, Glass |
| Power - Max | 18 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 5 kOhm |
| Resistance Tolerance (%) | 3 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
