EN3L3F16X

Active

Switchcraft Inc.

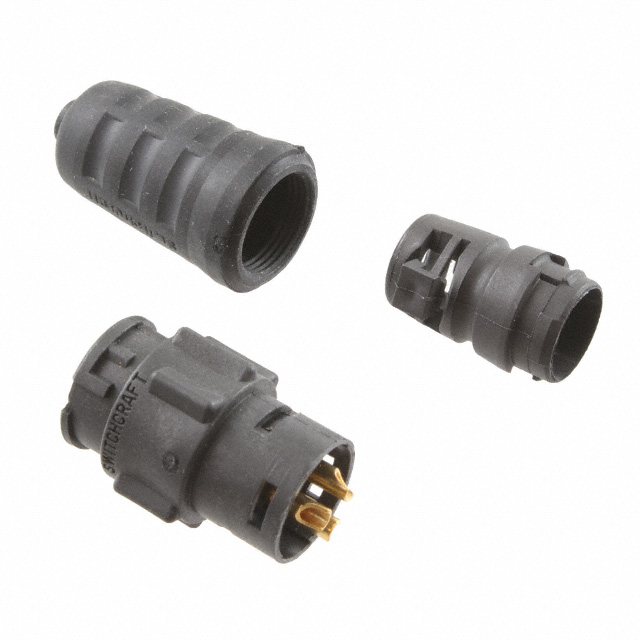

CONN CIRCULAR SKT 3 POS SOLDER CUP ST CABLE MOUNT 3 TERMINAL 1 PORT BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3L3F16X

Active

Switchcraft Inc.

CONN CIRCULAR SKT 3 POS SOLDER CUP ST CABLE MOUNT 3 TERMINAL 1 PORT BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	6	$ 12.93
		10	$ 12.81
		25	$ 12.70
Digikey	Bulk	1	$ 9.37
		10	$ 8.31
		25	$ 7.99
		50	$ 7.67
		100	$ 7.50

Description

General part information

EN3L3F Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3L3F16X	EN3L3F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	5.84 mm
Cable Opening	-	0.38 in
Cable Opening	-	9.65 mm
Cable Opening	-	0.23 in
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3L3F Series

CONN RCPT FMALE 3P GOLD SLDR CUP

Part	Current Rating (Amps)	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Fastening Type	Connector Type	Applications	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Type	Color	Features	Ingress Protection	Backshell Material, Plating	Contact Material	Primary Material	Voltage Rating	Contact Finish - Mating	Material Flammability Rating	Shielding	Termination	Cable Opening [diameter]	Cable Opening [diameter]
Switchcraft Inc. EN3L3F16LX	13 A	5.84 mm	0.38 in	9.65 mm	0.23 in	Bayonet Lock	Receptacle, Female Sockets	General Purpose, Instrumentation, Marine, Medical	Elastomer	65 °C	-40 °C	Keyed	Free Hanging (In-Line)	Black	Backshell, Cable Clamp	IP66/IP68	Thermoplastic	Copper Alloy	Plastic	250 VAC	Gold	UL94 V-0	Unshielded
Switchcraft Inc. EN3L3FCX	7.5 A					Bayonet Lock	Receptacle, Female Sockets	General Purpose, Instrumentation, Marine, Medical	Elastomer	65 °C	-40 °C	Keyed	Free Hanging (In-Line)	Black	Backshell, Cable Clamp	IP66/IP68	Thermoplastic	Copper Alloy	Plastic	250 VAC	Gold	UL94 V-0	Unshielded	Crimp	4.06 mm, 6.73 mm	0.16 in, 0.265 in
Switchcraft Inc. EN3L3FX	7.5 A					Bayonet Lock	Receptacle, Female Sockets	General Purpose, Instrumentation, Marine, Medical	Elastomer	65 °C	-40 °C	Keyed	Free Hanging (In-Line)	Black	Backshell, Cable Clamp	IP66/IP68	Thermoplastic	Copper Alloy	Plastic	250 VAC	Gold	UL94 V-0	Unshielded		4.06 mm, 6.73 mm	0.16 in, 0.265 in
Switchcraft Inc. EN3L3F16X	13 A					Bayonet Lock	Receptacle, Female Sockets	General Purpose, Instrumentation, Marine, Medical	Elastomer	65 °C	-40 °C	Keyed	Free Hanging (In-Line)	Black	Backshell, Cable Clamp	IP66/IP68	Thermoplastic	Copper Alloy	Plastic	250 VAC	Gold	UL94 V-0	Unshielded		4.06 mm, 6.73 mm	0.16 in, 0.265 in
