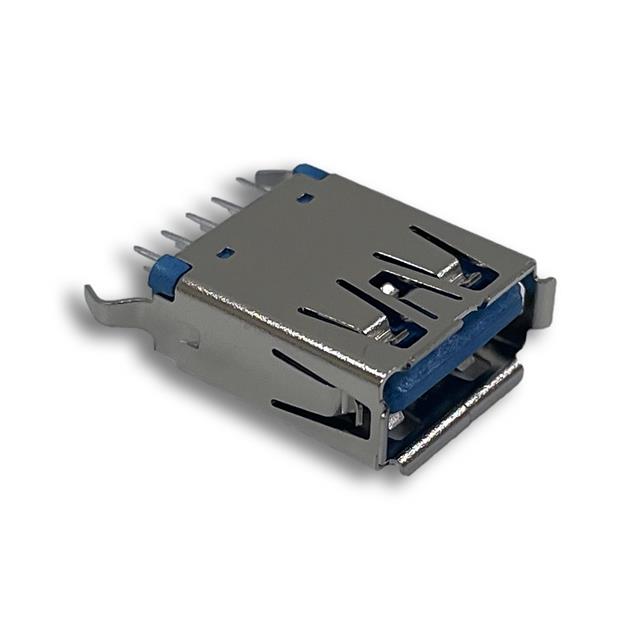

PCUA30E
ActiveSWITCHCRAFT/CONXALL
USB TYPE-A 3.0 CONNECTOR, STRAIG
PCUA30E
ActiveSWITCHCRAFT/CONXALL
USB TYPE-A 3.0 CONNECTOR, STRAIG
Description
General part information
PCUA30E
USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | PCUA30E |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating | 1.5 A |
| Gender | Receptacle |
| Insulation Color | Blue |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Shell/Shielding Material | Steel |
| Shielding | Shielded |
| Specifications | Superspeed (USB 3.0), USB 3.1 Gen 1, USB 3.2 Gen 1 |
| Termination | Solder |
