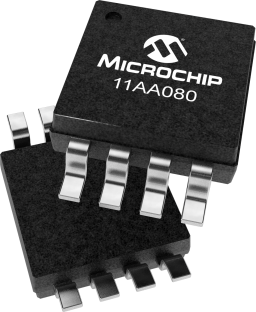

11AA080T-I/MS
Active8K, 1024 X 8 1.8V SERIAL EE, IND 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
11AA080T-I/MS
Active8K, 1024 X 8 1.8V SERIAL EE, IND 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 11AA080T-I/MS | 11AA080 Series |
|---|---|---|
| - | - | |
| Clock Frequency | 100 kHz | 100 kHz |
| Memory Format | EEPROM | EEPROM |
| Memory Interface | Single Wire | Single Wire |
| Memory Organization | 1K x 8 | 1K x 8 |
| Memory Size | 8 Kbit | 8 Kbit |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-MSOP, 8-TSSOP | 8-SOIC, 8-WFDFN Exposed Pad, 8-MSOP, 8-TSSOP, 8-DIP |
| Package / Case | 3 mm | 0.3 - 3 mm |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Package / Case | - | 7.62 mm |
| Package / Case [custom] | 0.118 in | 0.118 in |
| Supplier Device Package | 8-MSOP | 8-SOIC, 8-TDFN (2x3), 8-MSOP, 8-PDIP |
| Technology | EEPROM | EEPROM |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 1.8 V | 1.8 V |
| Write Cycle Time - Word, Page | 5 ms | 5 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 0.36 | |
| Microchip Direct | T/R | 1 | $ 0.37 | |
| 25 | $ 0.36 | |||
| 100 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
| 5000 | $ 0.30 | |||
| Newark | Each (Supplied on Full Reel) | 100 | $ 0.37 | |
11AA080 Series
1.8V UNI/O® Serial EEPROM with 8Kb of memory
| Part | Memory Format | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Memory Organization | Operating Temperature [Max] | Operating Temperature [Min] | Write Cycle Time - Word, Page | Technology | Mounting Type | Clock Frequency | Memory Size | Memory Type | Package / Case | Package / Case [y] | Package / Case [x] | Memory Interface | Package / Case [custom] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 11AA080T-I/SN | ||||||||||||||||||||
Microchip Technology 11AA080T-I/SN | ||||||||||||||||||||
Microchip Technology 11AA080T-I/SN | EEPROM | 8-SOIC | 1.8 V | 5.5 V | 1K x 8 | 85 °C | -40 °C | 5 ms | EEPROM | Surface Mount | 100 kHz | 8 Kbit | Non-Volatile | 8-SOIC | 3.9 mm | 0.154 in | Single Wire | |||
Microchip Technology 11AA080T-I/MS | ||||||||||||||||||||
Microchip Technology 11AA080-I/TO | ||||||||||||||||||||
Microchip Technology 11AA080-I/SN | EEPROM | 8-SOIC | 1.8 V | 5.5 V | 1K x 8 | 85 °C | -40 °C | 5 ms | EEPROM | Surface Mount | 100 kHz | 8 Kbit | Non-Volatile | 8-SOIC | 3.9 mm | 0.154 in | Single Wire | |||
Microchip Technology 11AA080T-I/TT | ||||||||||||||||||||
Microchip Technology 11AA080-I/MS | ||||||||||||||||||||
Microchip Technology 11AA080-I/SN | ||||||||||||||||||||
Microchip Technology 11AA080-I/SN | ||||||||||||||||||||
Microchip Technology 11AA080-I/P | ||||||||||||||||||||
Microchip Technology 11AA080T-I/MNY | EEPROM | 8-TDFN (2x3) | 1.8 V | 5.5 V | 1K x 8 | 85 °C | -40 °C | 5 ms | EEPROM | Surface Mount | 100 kHz | 8 Kbit | Non-Volatile | 8-WFDFN Exposed Pad | Single Wire | |||||
Microchip Technology 11AA080T-I/MS | ||||||||||||||||||||
Microchip Technology 11AA080T-I/MNY | ||||||||||||||||||||
Microchip Technology 11AA080-I/P | ||||||||||||||||||||
Microchip Technology 11AA080-I/MS | ||||||||||||||||||||
Microchip Technology 11AA080T-I/MS | EEPROM | 8-MSOP | 1.8 V | 5.5 V | 1K x 8 | 85 °C | -40 °C | 5 ms | EEPROM | Surface Mount | 100 kHz | 8 Kbit | Non-Volatile | 8-MSOP, 8-TSSOP | Single Wire | 0.118 in | 3 mm | |||
Microchip Technology 11AA080-I/P | EEPROM | 8-PDIP | 1.8 V | 5.5 V | 1K x 8 | 85 °C | -40 °C | 5 ms | EEPROM | Through Hole | 100 kHz | 8 Kbit | Non-Volatile | 8-DIP | Single Wire | 0.3 in | 7.62 mm | |||
Microchip Technology 11AA080-I/SN | ||||||||||||||||||||
Microchip Technology 11AA080T-I/SN |
Description
General part information
11AA080 Series
Need more microcontroller pins for new features? Want to stay with a low pin-count microcontroller rather than switching to a more expensive one? Microchip’s UNI/O® bus serial EEPROM uses only one connection to the host microcontroller. This compares to two or three pins for I2C and three to six pins for Microwire or SPI buses. This proprietary bus offers advanced features like a status register and write protection on demand, along with all I/O, memory array and command functions through a single pin.
