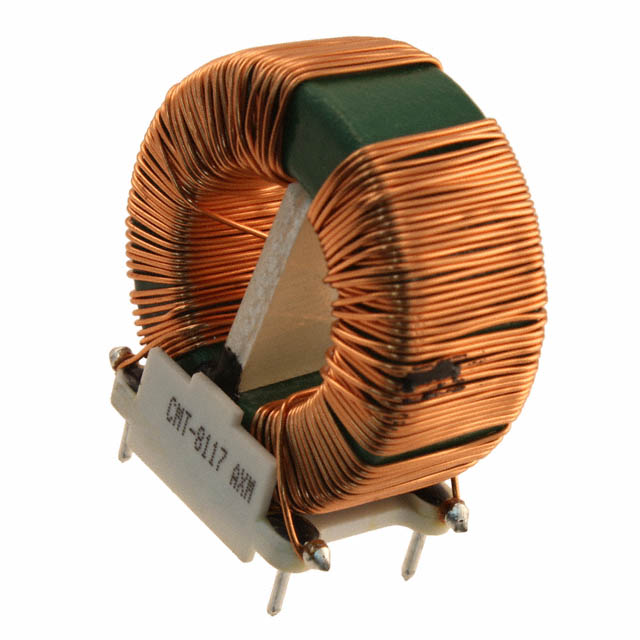

CMT-8117
36 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2.9A DCR 300mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CMT-8117 |
|---|---|
| Approval Agency | IEC, VDE, CSA, UL |
| Current Rating (Max) | 2.9 A |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.65 in |
| Inductance | 36 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.55 in |
| Size / Dimension Width | 0.8 in |
| Voltage Rating - AC | 1500 Vpk |
