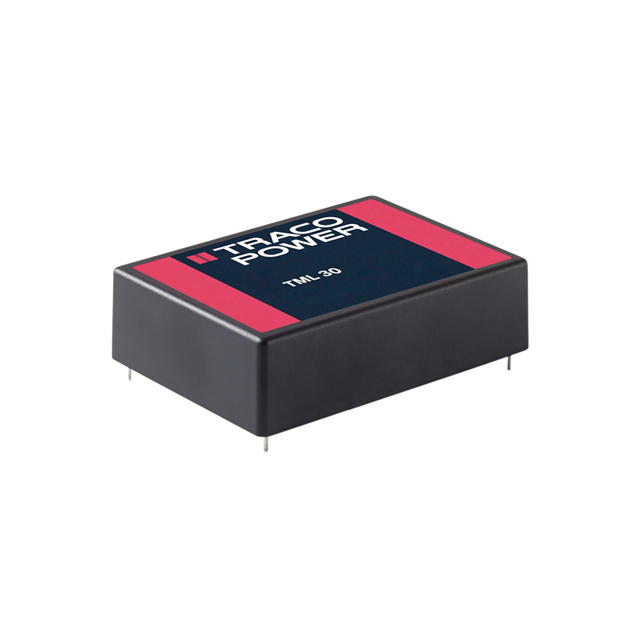

TML 30215
ObsoleteTraco Power
AC/DC CONVERTER +/-15V 30W
TML 30215
ObsoleteTraco Power
AC/DC CONVERTER +/-15V 30W
Description
General part information
TML 30215
Enclosed AC DC Converters 2 Output 15V 1A, 1A 90 ~ 264 VAC, 100 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | TML 30215 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output (Max) | 1 A |
| Efficiency | 80 % |
| Features | Universal Input |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Package Leads | 5 Leads |
| Package Name | 7-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension Height | 0.98 in |
| Size / Dimension Length | 3.5 in |
| Size / Dimension Width | 2.5 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 100 V |
| Voltage - Output 1 | 15 V |
