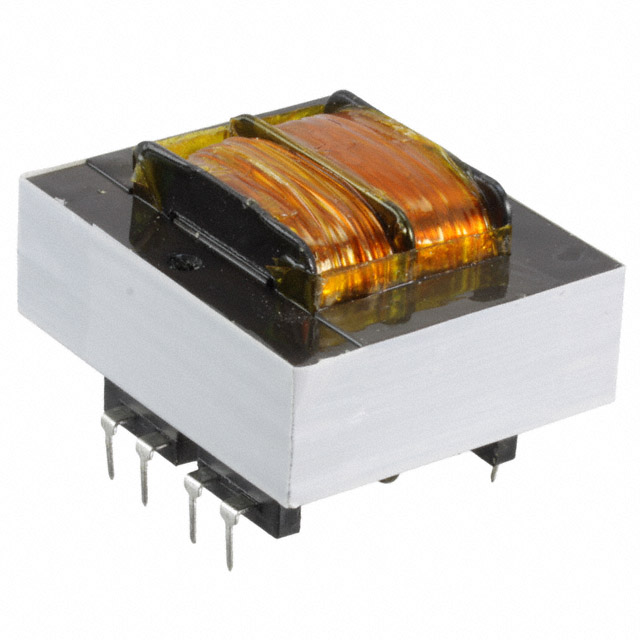

FS16-1250-C2
ActiveTriad Magnetics
POWER XFMR 16 VCT @ 1250 MA UL/CUL - CLASS 2/3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS16-1250-C2 ROHS COMPLIANT: YES
FS16-1250-C2
ActiveTriad Magnetics
POWER XFMR 16 VCT @ 1250 MA UL/CUL - CLASS 2/3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS16-1250-C2 ROHS COMPLIANT: YES
Description
General part information
FS16-1250-C2
POWER XFMR 16 VCT @ 1250 MA UL/CUL - CLASS 2/3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS16-1250-C2 ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | FS16-1250-C2 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 2.5 A |
| Current - Output (Max) Series | 1.25 A |
| Height - Seated (Max) | 36.5 mm |
| Mounting Type | Through Hole |
| Power - Max | 20 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 2.25 in |
| Size / Dimension Width | 47.63 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 4200 VDC |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 8 V |
| Voltage - Secondary (Full Load) (Series) | 16 V |
| Weight | 0.8 lb |
