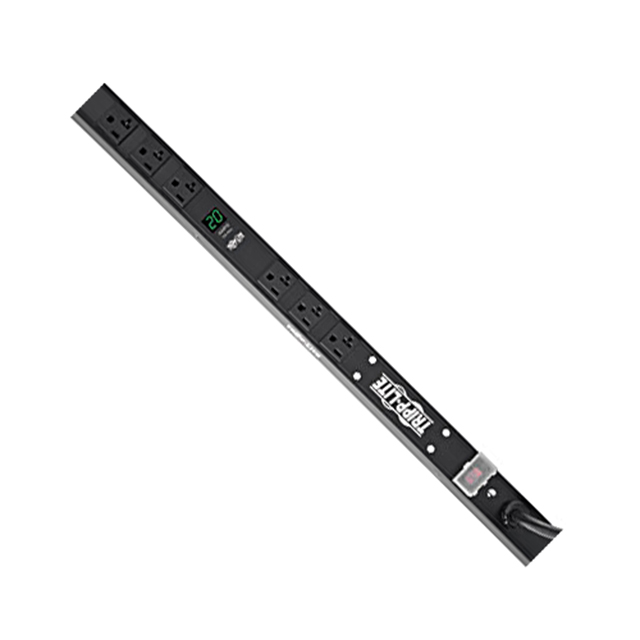

Specification	PDUMV20-24

AC Outlets (Count)	6 count
Approval Agency	NOM, UL, CSA, FCC
Connector - AC Input	NEMA 5-20P, NEMA L5-20P
Connector - AC Output	NEMA 5-15/20R
Cord Length	15 ft
Current - Max	20 A
Features	Load Meter
Housing Material	Aluminum
Mounting Type	Rack, Vertical
Overload Protection	Circuit Breaker(s)
Region Utilized	North America
Type	PDU (Power Distribution Unit)
Voltage - Input	120 VAC
Weight	3.2 lbs

Local Metered Series

Part	AC Outlets (Count)	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Connector - AC Input	Current - Max	Mounting Type	Housing Material	Type	Approval Agency	Connector - AC Output	Connector - AC Output Quantity (C19)	Connector - AC Output Quantity (IEC 320-C13)	Cord Length	Region Utilized	Features	Voltage - Input	Connector - AC Output Quantity (NEMA 5-15R)	Connector - AC Input Pin Count	Overload Protection	Connector - AC Input Quantity	Weight	Connector - AC Output Quantity (NEMA 5-20R)
Eaton Tripp Lite PDUMH20HV	10 count	200 V	240 V	NEMA L6-20P	20 A	Horizontal Rack	Steel	PDU (Power Distribution Unit)	CE NOM UL	C19 IEC 320-C13	2 pcs	8 pcs	12 ft	North America	Load Meter
Eaton Tripp Lite PDUMH15ATS	8 count			NEMA 5-15P	15 A	Horizontal Rack	Metal	PDU (Power Distribution Unit)	CSA UL	NEMA 5-15R			12 ft	North America	Dual Load Meters Dual Power Input for Redundant Power Supplies	120 VAC	8 pcs	2 pins	None
Eaton Tripp Lite PDUMH15HVAT	10 count			IEC 320-C14	10 A	Rack Mount	Steel	PDU (Power Distribution Unit)	CE FCC GOST NOM UL	IEC 320-C13			12 ft	International	Auto Transfer Switch Load Meter	200 VAC 208 VAC 220 VDC 230 V 240 VAC			None	2 pcs	15.6 lbs
Eaton Tripp Lite PDUMH15	13 count			NEMA 5-15P	15 A	Horizontal Rack	Steel	PDU (Power Distribution Unit)	CSA UL	NEMA 5-15R			15 ft	North America	Load Meter	120 VAC			Circuit Breaker(s)
Eaton Tripp Lite PDUMV15	16 count			NEMA 5-15P	15 A	Rack Vertical	Aluminum	PDU (Power Distribution Unit)	CSA UL	NEMA 5-15R			15 ft	North America	Load Meter	120 VAC			Circuit Breaker(s)		3.8 lbs
Eaton Tripp Lite PDUMH15	13 count			NEMA 5-15P	15 A	Horizontal Rack	Steel	PDU (Power Distribution Unit)	CSA UL	NEMA 5-15R			15 ft	North America	Load Meter	120 VAC			Circuit Breaker(s)		4.5 lbs
Eaton Tripp Lite PDUMV16HV	38 count			IEC 309	16 A	Rack Vertical	Aluminum	PDU (Power Distribution Unit)	CE GOST	C19 IEC 320-C13	6 pcs	32 pcs	10 ft	International	Load Meter	230 V			None
Eaton Tripp Lite PDUMV20HV	38 count	200 V	240 V	NEMA L6-20P	20 A	Rack Vertical	Aluminum	PDU (Power Distribution Unit)	CE NOM UL	C19 IEC 320-C13	6 pcs	32 pcs	10 ft	International	Load Meter
Eaton Tripp Lite PDUMH30HV	18 count			NEMA L6-30P	30 A	Horizontal Rack	Steel	PDU (Power Distribution Unit)	NOM UL	C19 IEC 320-C13	2 pcs	16 pcs	12 ft	North America	Load Meter	208 VAC 240 VAC
Eaton Tripp Lite PDU3MV6L2120	48 count			NEMA L21-20P	16 A	Rack Vertical	Steel	PDU (Power Distribution Unit)	NOM UL	C19 IEC 320-C13 NEMA 5-20R	6 pcs	36 pcs	6 ft		Load Meter	208 VAC			Circuit Breaker(s)			6 pcs
