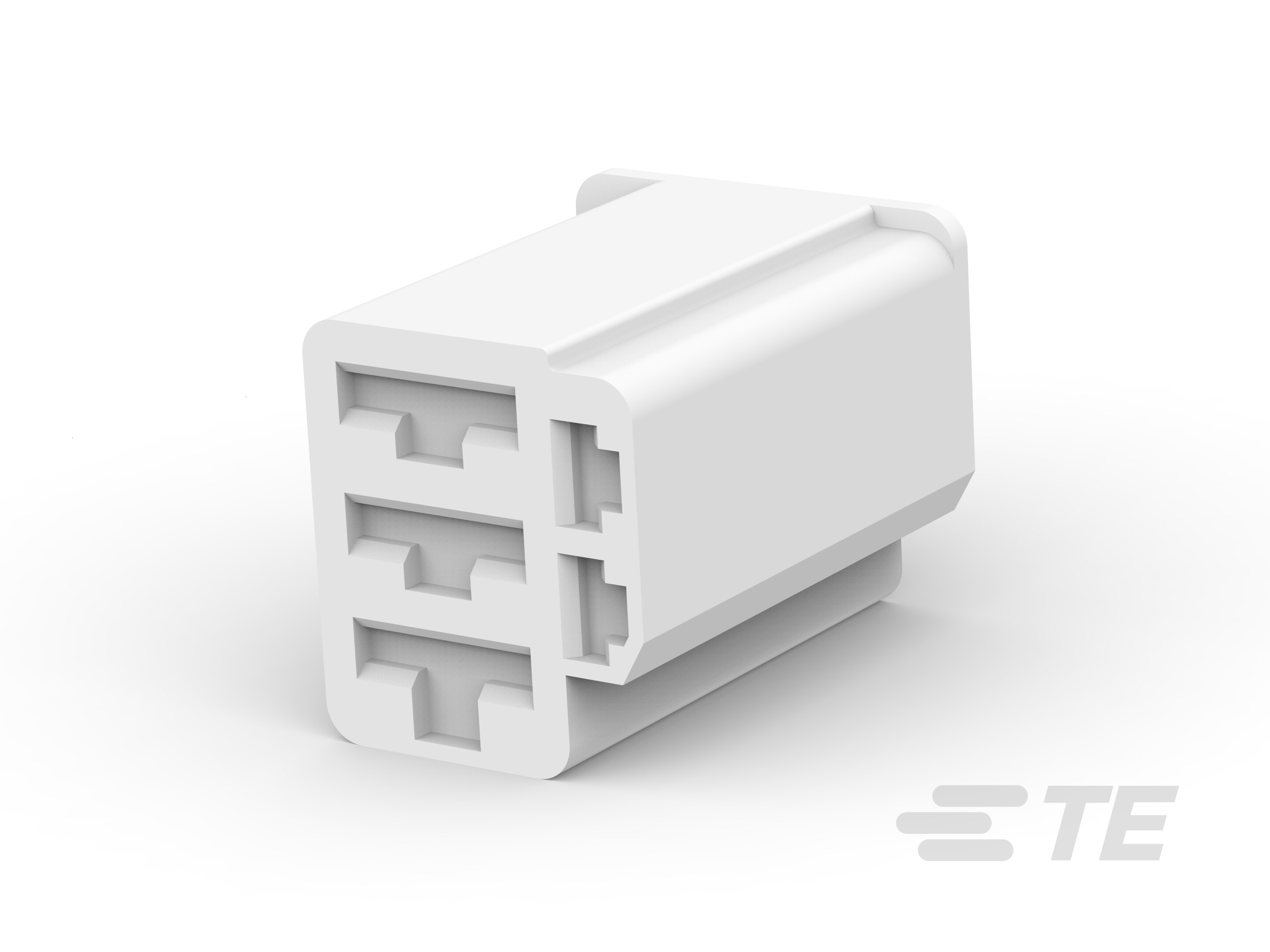

Specification	880191-1

Color	Natural
For Use With/Related Products	0.110" (2.79mm) and 0.250" (6.35mm) Quick Connects
Gender	Female, Receptacle
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Stacking Direction	Multiple
Style	Housing
Terminal Size (Option 1)	0.11 in
Terminal Size (Option 2)	0.25 in
Terminal Type	Disconnect, Quick Connect

FASTIN-FASTON 110 Series

...

Part	Length - Overall	Termination	Tab Width	Contact Finish	Insulation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Gender	Contact Material	Tab Thickness	Mounting Type	Tab Length	Terminal Type	Material	Number of Positions	Stacking Direction	Color	Style	Insulation Diameter (Max)	Insulation Diameter (Min)	Wire Gauge	Note	Related Product Length	For Use With/Related Products	Terminal Size
TE Connectivity AMP Connectors 880638-2	0.866 in	Crimp	0.11 in	Tin	Non-Insulated	17 AWG	14 AWG	Male	Brass	0.032 in	Free Hanging (In-Line)	0.488 in	Standard
TE Connectivity AMP Connectors 928193-1								Female Receptacle			Free Hanging (In-Line)		Disconnect Quick Connect	Polyester	2	Side to Side	Black	Housing
TE Connectivity AMP Connectors 928930-2		Crimp	0.11 in	Tin	Non-Insulated	20.5 AWG	17 AWG	Male	Copper	0.032 in	Free Hanging (In-Line)		Standard
TE Connectivity AMP Connectors 928930-3		Crimp	0.11 in		Non-Insulated	20.5 AWG	17 AWG	Male	Copper	0.032 in	Free Hanging (In-Line)	0.492 in	Standard						0.091 in	0.055 in
TE Connectivity AMP Connectors 150571-2	0.625 in	Crimp	0.11 in	Tin	Non-Insulated	24 AWG	19.5 AWG	Female	Brass	0.032 in	Free Hanging (In-Line)	0.25 in	Standard						0.08 in	0.05 in
TE Connectivity AMP Connectors 170014-1	0.807 in	Crimp	0.11 in		Non-Insulated	20.5 AWG	16 AWG	Male	Brass	0.02 in	Free Hanging (In-Line)	0.472 in	Standard
TE Connectivity AMP Connectors 493466-1		Crimp	0.11 in	Tin	Non-Insulated			Female	Brass	0.028 in	Free Hanging (In-Line)	0.248 in	Standard								16 AWG
TE Connectivity AMP Connectors 1217281-2	0.55 in	Crimp	0.11 in	Tin	Non-Insulated	24 AWG	19.5 AWG	Female	Brass	0.032 in	Free Hanging (In-Line)	0.25 in	Standard
TE Connectivity AMP Connectors 626063-1								Male Tab			Free Hanging (In-Line)		Disconnect Quick Connect	Nylon Polyamide (PA)	1		Natural	Housing				Contacts Not Included	0.11 in	0.110" (2.79mm) Quick Connects Quick Connects	0.11 in
TE Connectivity AMP Connectors 881799-3	0.551 in	Crimp	0.11 in		Non-Insulated	20.5 AWG	17 AWG	Female	Phosphor Bronze	0.032 in	Free Hanging (In-Line)	0.248 in	Standard						0.091 in	0.055 in
