Specification	EZ-195/200-UM-RA-X

Body Finish	Tin
Body Material	Brass
Cable Group	LMR-200, LMR-195
Center Contact Material	Phosphor Bronze
Center Contact Plating	Silver
Connector Style	UHF
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	3 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp

EZ-195 Series

Part	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Includes Total Count	Includes	Number of Ports	Connector Style	Fastening Type	Mounting Type	Connector Type	Contact Termination	Impedance	Shield Termination	Housing Color	Cable Group	Frequency - Max	Body Finish	Center Contact Material	Body Material	Dielectric Material	Mating Cycles

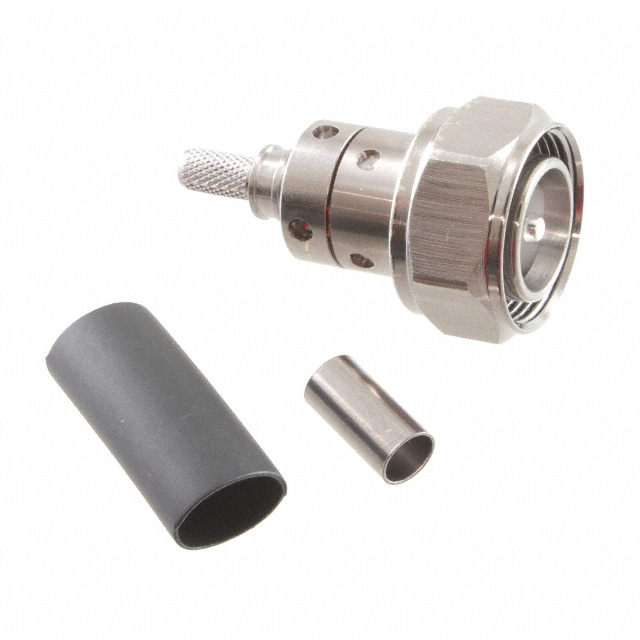

McGill Microwave Systems EZ-195/200-4310M-X	Gold	-40 °C	85 °C	2 pcs	Connector Ferrule	1	4.3/10	Threaded	Free Hanging (In-Line) Right Angle	Male Pin Plug	Crimp	50 Ohm	Crimp	Silver	LMR-195 LMR-200	6000 MHz
McGill Microwave Systems EZ-195-TM-X	Gold	-40 °C	85 °C	2 pcs	Connector Ferrule	1	RP-TNC	Threaded	Free Hanging (In-Line)	Jack Male Pin	Crimp	50 Ohm	Crimp	Silver	LMR-195	6000 MHz	White Bronze
McGill Microwave Systems EZ-195/200-716M-RA-X	Gold	-40 °C	85 °C	2 pcs	Connector Ferrule	1	4.3/10	Threaded	Free Hanging (In-Line)	Male Pin Plug	Crimp	50 Ohm	Crimp	Silver	LMR-195 LMR-200	6000 MHz
McGill Microwave Systems EZ-195-QF-X	Gold	-40 °C	125 °C	2 pcs	Connector Ferrule	1	QN	Threaded	Free Hanging (In-Line)	Male Pin Plug	Crimp	50 Ohm	Crimp	Silver	LMR-195 LMR-200	6000 MHz	Tin	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	100 cycles

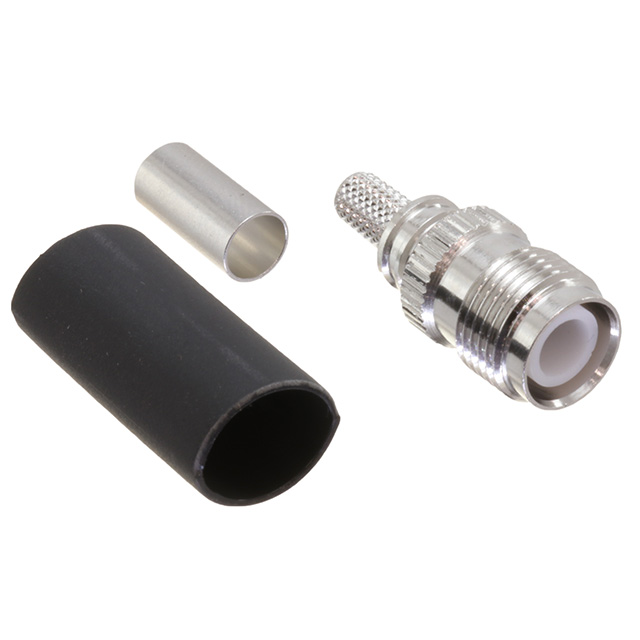

McGill Microwave Systems EZ-195-TF-RP-X

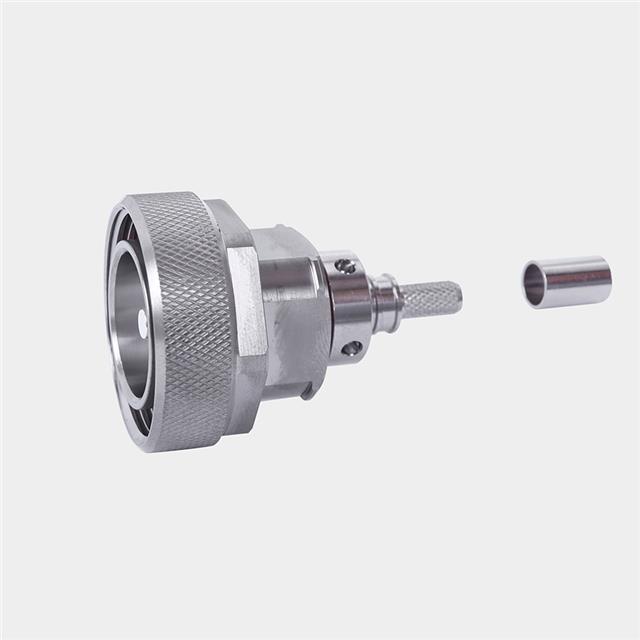

McGill Microwave Systems EZ-195/200-716M-X	Gold	-40 °C	85 °C	2 pcs	Connector Ferrule	1	7/16 DIN	Threaded	Free Hanging (In-Line) Right Angle	Male Pin Plug	Crimp	50 Ohm	Crimp	Silver	LMR-195 LMR-200	7.5 GHz

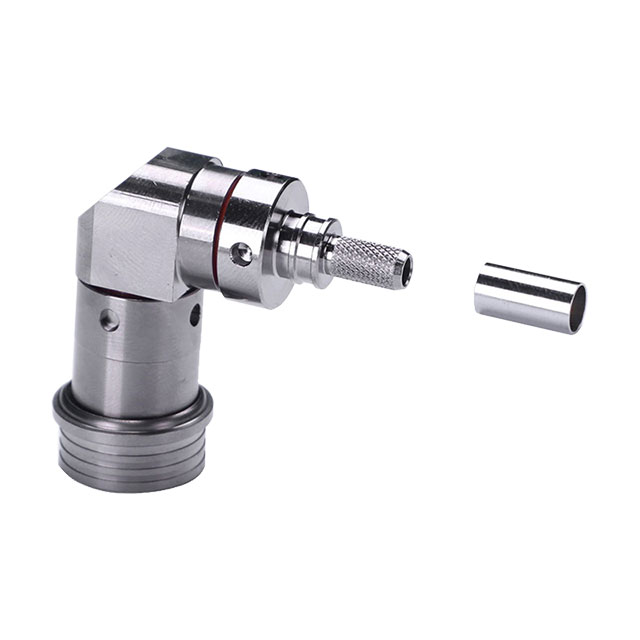

McGill Microwave Systems EZ-195/200-QNM-X	Gold	-40 °C	125 °C	2 pcs	Connector Ferrule	1	QN	Threaded	Free Hanging (In-Line) Right Angle	Male Pin Plug	Crimp	50 Ohm	Crimp	Silver	LMR-195 LMR-200	6000 MHz	Tin	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	100 cycles
McGill Microwave Systems EZ-195-QM-X	Gold	-40 °C	125 °C	2 pcs	Connector Ferrule	1	QMA	Snap-On	Free Hanging (In-Line)	Female Socket Jack	Crimp	50 Ohm	Crimp	Silver	LMR-195	8 GHz	White Bronze	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	100 cycles

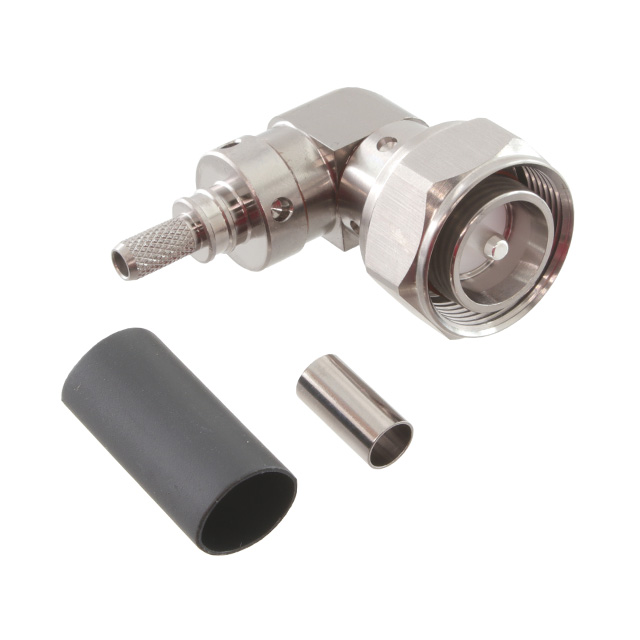

McGill Microwave Systems EZ-195/200-4310M-RA-X	Gold	-40 °C	85 °C	2 pcs	Connector Ferrule	1	4.3/10	Threaded	Free Hanging (In-Line)	Male Pin Plug	Crimp	50 Ohm	Clamp	Silver	LMR-195 LMR-200	6000 MHz
McGill Microwave Systems EZ-195-BM-X	Gold	-40 °C	85 °C			1	BNC	Bayonet Lock	Free Hanging (In-Line)	Male Pin Plug	Push On	50 Ohm	Crimp	Silver	LMR-195	4 GHz	White Bronze
