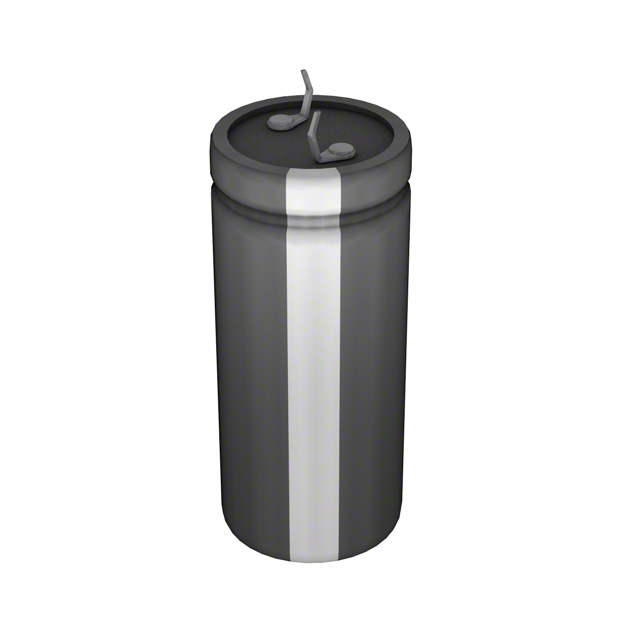

Specification	SLP273M010A9P3

Applications	General Purpose
Capacitance	27000 µF
ESR (Equivalent Series Resistance)	27 mOhm
Height - Seated (Max)	1.969 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	3.19 A, 3.99 A
Size / Dimension Diameter	0.866 in
Tolerance	20 %
Voltage - Rated	10 V
