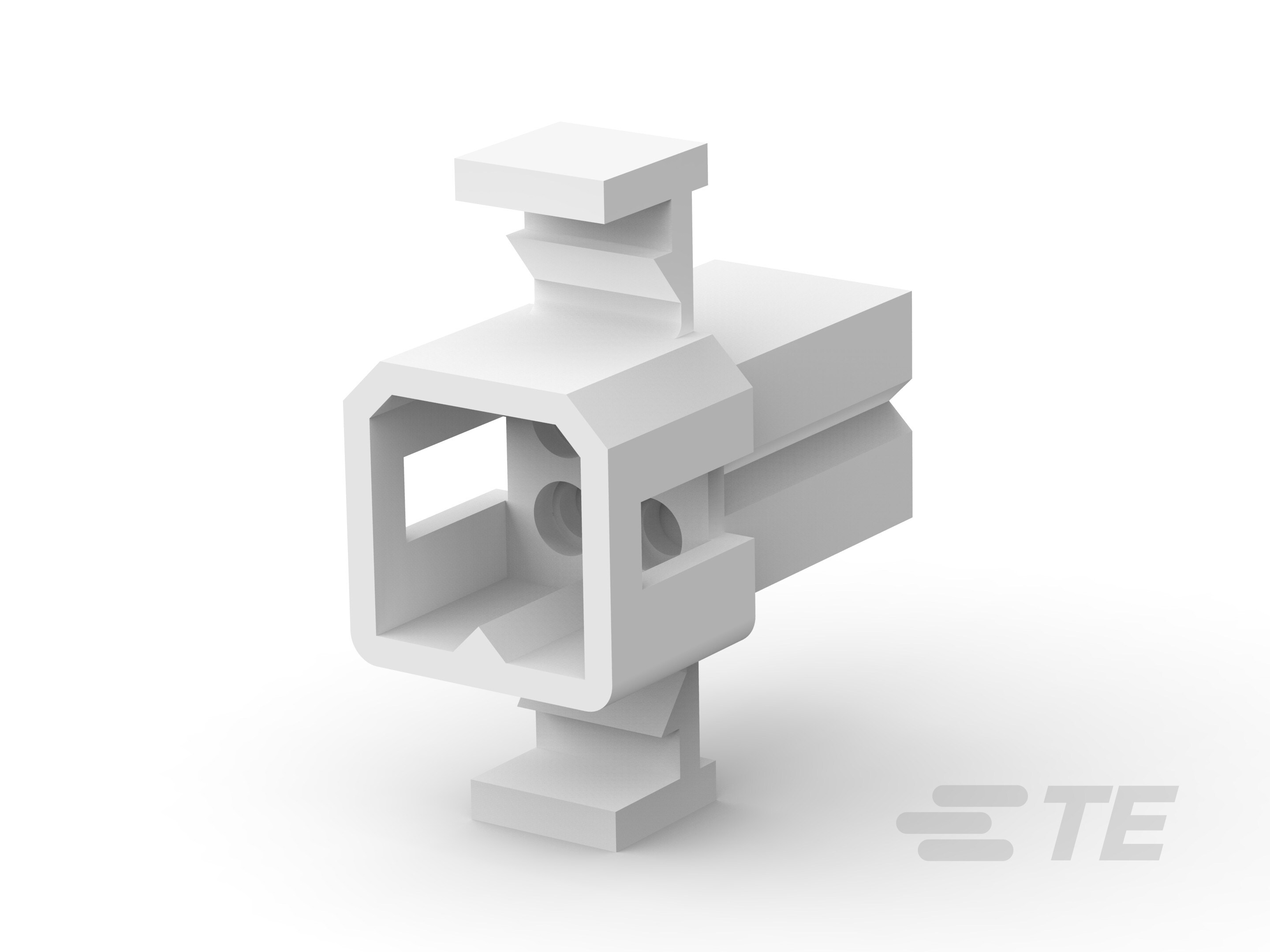

Specification	770443-1

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male or Female, Male, Female
Fastening Type	Detent Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Panel Mount, Snap-In
Number of Positions	4
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.145 in
Row Spacing	0.145 in

MATE-N-LOK Series

Part	Pin or Socket	Contact Finish	Contact Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Mounting Type	Number of Positions Loaded	Termination	Connector Type	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Style	Insulation Color	Voltage Rating	Features	Contact Material	Insulation Material	Pitch - Mating	Shrouding	Number of Rows	Fastening Type	Contact Finish Thickness - Mating	Number of Positions	Insulation Height	Contact Finish - Mating	Current Rating	Current Rating	Contact Finish - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Note	Pitch	Color	Type	Contact Finish Thickness - Post	Applications	Row Spacing - Mating	Accessory Type	For Use With/Related Products
TE Connectivity AMP Connectors 350217-1	Socket	Tin	Crimp	14 AWG	20.5 AWG
TE Connectivity AMP Connectors 2-1445089-6						Right Angle Through Hole	All	Solder	Header	Square	-40 °C	105 °C	Board Cable/Wire	Black	250 V	Board Lock	Brass	Nylon Polyamide (PA)	0.118 in	Shrouded - 4 Wall	1	Locking Ramp	15 µin	6	0.152 in	Gold	0 A	Varies by Wire Gauge	Tin	0.138 in	UL94 V-0	Male Pin
TE Connectivity AMP Connectors 770068-1			Crimp			Panel Mount Snap-In			Plug		-55 °C	105 °C						Nylon Polyamide (PA)			1	Detent Lock		2								Female Male Male or Female	Contacts Not Included	0.248 in	Natural
TE Connectivity AMP Connectors 925866-2	Socket	Silver	Crimp	14 AWG	20.5 AWG																															Stamped
TE Connectivity AMP Connectors 770424-1			Crimp			Free Hanging (In-Line)			Receptacle		-55 °C	105 °C						Nylon Polyamide (PA)			1	Locking Ramp		2								Female Male Male or Female	Contacts Not Included	0.248 in	Natural
TE Connectivity AMP Connectors 3-1445050-2						Through Hole	All	Press-Fit Solder	Header	Square	-40 °C	105 °C	Board Cable/Wire	Black	250 V	Board Guide	Brass	Nylon Polyamide (PA)	0.118 in	Shrouded - 4 Wall	1	Locking Ramp	100 µin	12	0.364 in	Tin	0 A	Varies by Wire Gauge	Tin	0.125 in	UL94 V-0	Male Pin					100 Ąin	General Purpose
TE Connectivity AMP Connectors 350644-1						Through Hole	All	Solder	Header	Circular			Board Cable/Wire	Natural			Phosphor Bronze	Nylon Polyamide (PA)	0.24 in		3	Push-Pull		15	0.47 in	Tin			Tin	0.16 in		Female Socket							0.202 in
TE Connectivity AMP Connectors 925662-2	Pin	Tin	Crimp	10 AWG	14 AWG

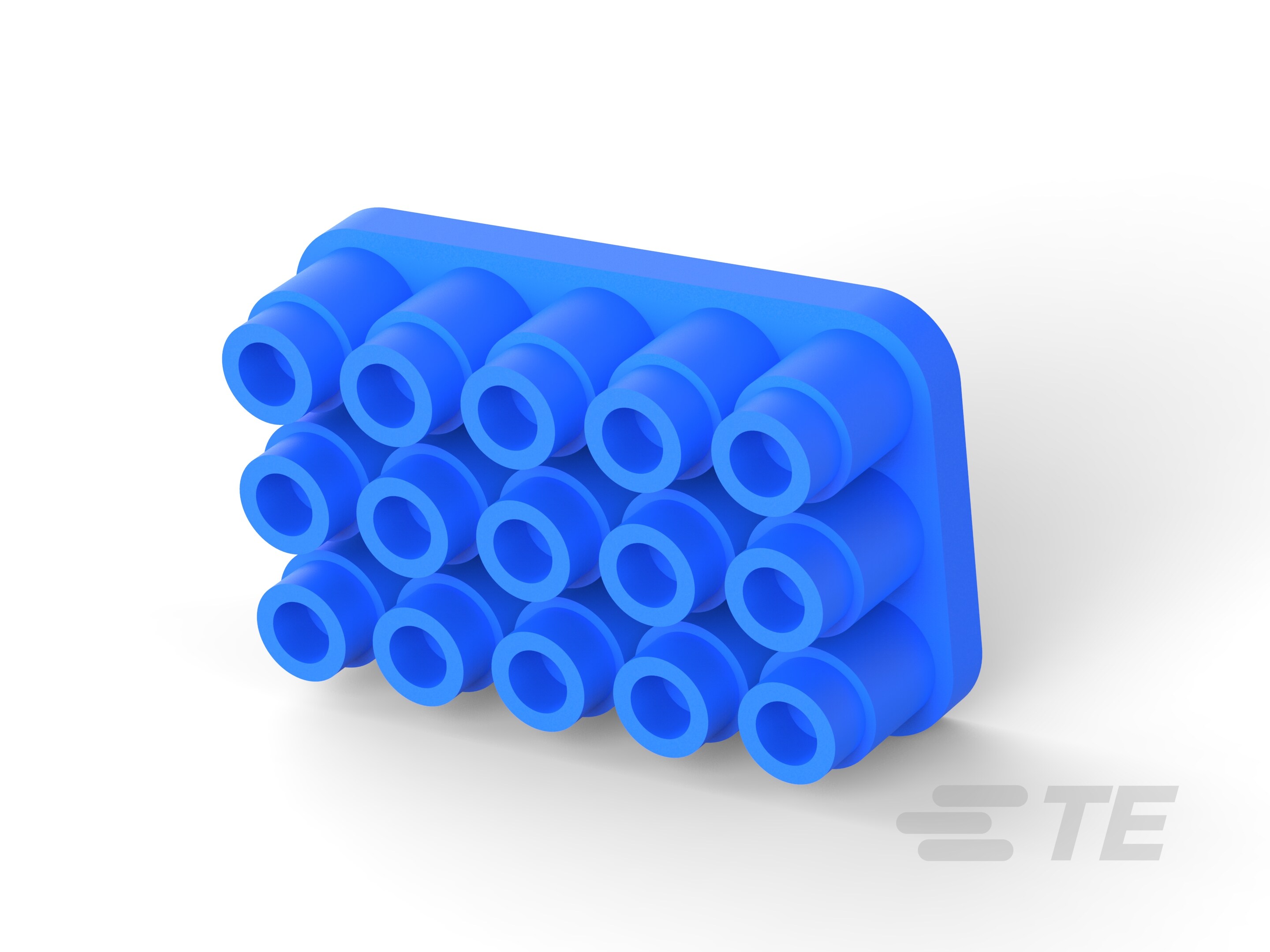

TE Connectivity AMP Connectors 794282-1																Splash-Proof								15																Plug Sealing	Universal MATE-N-LOK Series
TE Connectivity AMP Connectors 770278-1			Crimp			Free Hanging (In-Line)			Plug		-55 °C	105 °C						Nylon Polyamide (PA)			1	Detent Lock		1								Female Male Male or Female	Contacts Not Included		Natural
