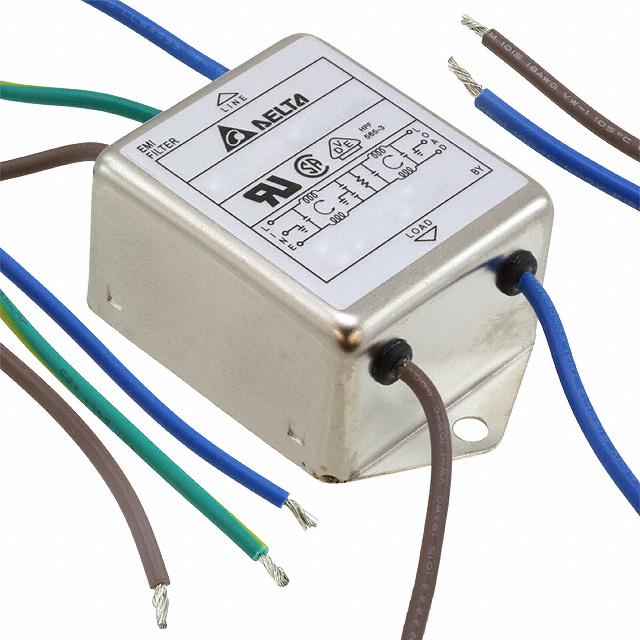

02DRCW5
ActiveDelta Electronics
LINE FILTER 115V/250VAC 2A CHAS
02DRCW5
ActiveDelta Electronics
LINE FILTER 115V/250VAC 2A CHAS
Description
General part information
02DRCW5
Single Phase EMC/EMI Line Filter 2 A 115V, 250V 50/60Hz Two Stage Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 02DRCW5 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR, CSA, VDE |
| Configuration | Two Stage |
| Current | 2 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Inductance | 2.4 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Wire Leads |
| Voltage - Rated AC | 250V, 115V |
