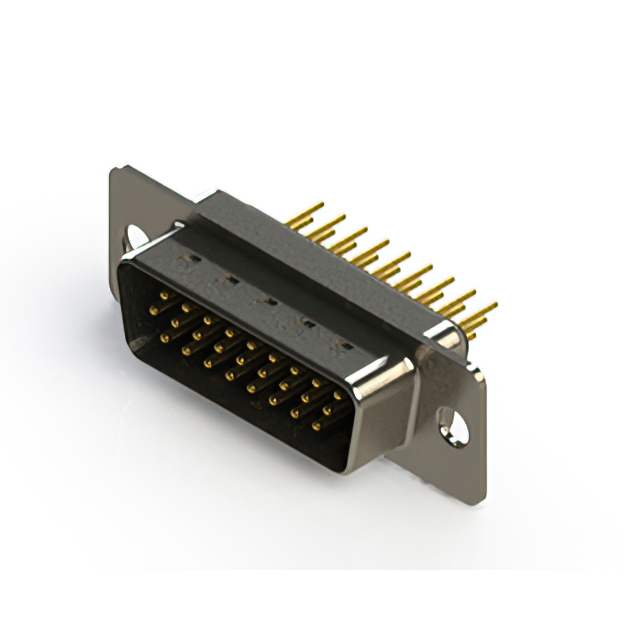

637-M26-630-BT1
ActiveEDAC Inc.
637M SERIES VERTICAL D-SUB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
637-M26-630-BT1
ActiveEDAC Inc.
637M SERIES VERTICAL D-SUB PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 637-M26-630-BT1 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
637-M26 Series
| Part | Contact Type | Contact Material | Features | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Flange Feature | Number of Positions | Current Rating (Amps) | Contact Finish | Material Flammability Rating | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Dielectric Material | Color | Number of Rows | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Signal | Copper Alloy | Grounding Indents Shielded | 15 µin | 0.38 µm | D-Sub High Density | Housing/Shell (4-40) | 26 | 5 A | Gold | UL94 V-0 | Free Hanging (In-Line) | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | |||
EDAC Inc. | Signal | Copper Alloy | Grounding Indents Shielded | 30 Áin | 0.76 Ám | D-Sub High Density | Housing/Shell (4-40) | 26 | 5 A | Gold | UL94 V-0 | Through Hole | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | Solder | ||
EDAC Inc. | Signal | Copper Alloy | Grounding Indents Shielded | D-Sub High Density | Housing/Shell (Unthreaded) | 26 | 5 A | Gold | UL94 V-0 | Free Hanging (In-Line) | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | Flash | ||||
EDAC Inc. | Signal | Copper Alloy | Grounding Indents Shielded | 30 Áin | 0.76 Ám | D-Sub High Density | Housing/Shell (4-40) | 26 | 5 A | Gold | UL94 V-0 | Through Hole | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | Solder | Nickel Plated Steel | |
EDAC Inc. | Signal | Copper Alloy | Grounding Indents Shielded | 30 Áin | 0.76 Ám | D-Sub High Density | Housing/Shell (Unthreaded) | 26 | 5 A | Gold | UL94 V-0 | Free Hanging (In-Line) | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | ||
EDAC Inc. | Signal | Copper Alloy | Grounding Indents Shielded | 30 Áin | 0.76 Ám | D-Sub High Density | Housing/Shell (Unthreaded) | 26 | 5 A | Gold | UL94 V-0 | Through Hole | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | Solder | ||
EDAC Inc. | Signal | Copper Alloy | Grounding Indents Shielded | D-Sub High Density | Housing/Shell (4-40) | 26 | 5 A | Gold | UL94 V-0 | Free Hanging (In-Line) | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | Flash | ||||
EDAC Inc. | Signal | Copper Alloy | Board Lock Grounding Indents Shielded | D-Sub High Density | Housing/Shell (4-40) | 26 | 5 A | Gold | UL94 V-0 | Through Hole | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | Solder | Flash | Nickel Plated Steel | ||
EDAC Inc. | Signal | Copper Alloy | Board Lock Grounding Indents Shielded | 30 Áin | 0.76 Ám | D-Sub High Density | Housing/Shell (4-40) | 26 | 5 A | Gold | UL94 V-0 | Through Hole | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | Solder | ||
EDAC Inc. | Signal | Copper Alloy | Grounding Indents Shielded | 30 Áin | 0.76 Ám | D-Sub High Density | Housing/Shell (4-40) | 26 | 5 A | Gold | UL94 V-0 | Free Hanging (In-Line) | 2 | (DA A) High Density | Polyamide (PA9T) Nylon 9T | Black | 3 | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 7.94 | |
Description
General part information
637-M26 Series
26 Position D-Sub, High Density Plug, Male Pins Connector
