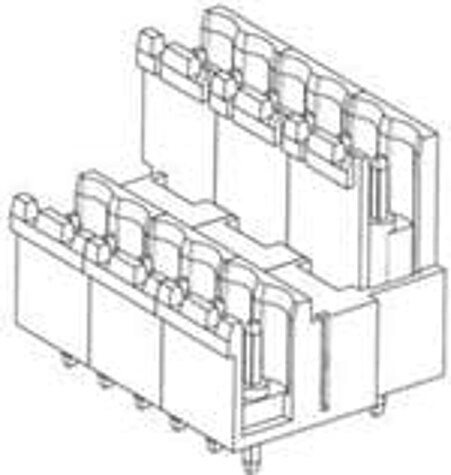

Specification	0395282022

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Current - UL	15 A
Features	Interlocking (Side)
Header Orientation	Vertical
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.87 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	22
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Positions Per Level	11
Termination Style	Solder
Type	Male Pins, Shrouded (2 Side), Header
Voltage - UL	300 V

039528 Series

Part	Current - UL	Positions Per Level	Color	Voltage - UL	Contact Mating Finish	Pitch	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Type	Header Orientation Angle	Header Orientation	Number of Levels	Mounting Type	Features	Insulation Height	Contact Tail Length	Material Flammability Rating	Housing Material	Contact Material
Molex 0395285010	15 A	5	Green	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	10	Header Male Pins Shrouded (2 Side)	90 °	Right Angle	2	Through Hole	Interlocking (Side)	0.93 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395281014	15 A	7	Black	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	14	Header Male Pins Shrouded (4 Side)	90 °	Right Angle	2	Through Hole		0.93 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395288004	15 A	2	Green	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	4	Header Male Pins Shrouded (4 Side)		Vertical	2	Through Hole		0.87 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395287004	15 A	2	Green	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	4	Header Male Pins Shrouded (2 Side)		Vertical	2	Through Hole	Interlocking (Side)	0.87 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395282030	15 A	15	Black	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	30	Header Male Pins Shrouded (2 Side)		Vertical	2	Through Hole	Interlocking (Side)	0.87 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395288028	15 A	14	Green	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	28	Header Male Pins Shrouded (4 Side)		Vertical	2	Through Hole		0.87 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395288006	15 A	3	Green	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	6	Header Male Pins Shrouded (4 Side)		Vertical	2	Through Hole		0.87 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395285022	15 A	11	Green	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	22	Header Male Pins Shrouded (2 Side)	90 °	Right Angle	2	Through Hole	Interlocking (Side)	0.93 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395283048	15 A	24	Black	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	48	Header Male Pins Shrouded (4 Side)		Vertical	2	Through Hole		0.87 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395281026	15 A	13	Black	300 V	Tin	0.197 in	Solder	-40 °C	105 °C	26	Header Male Pins Shrouded (4 Side)	90 °	Right Angle	2	Through Hole		0.93 in	0.138 in	UL94 V-0	Nylon 6/6 PA66 Polyamide	Brass
