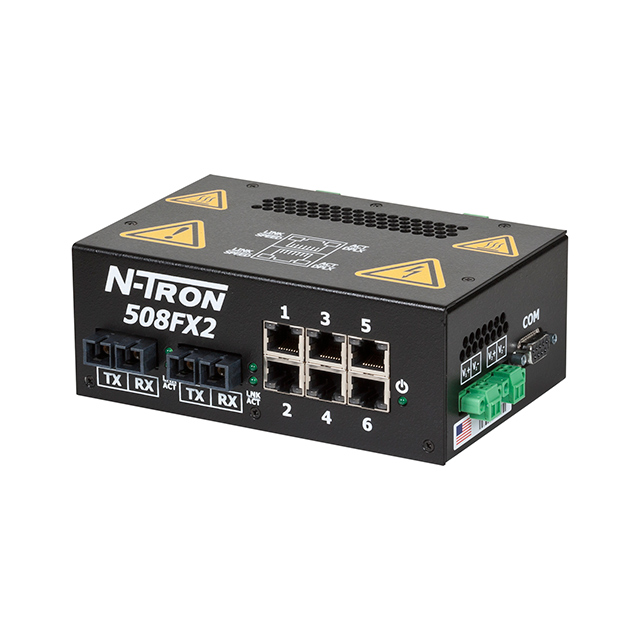

508FXE2-ST-40

Obsolete

RED LION CONTROLS

NETWORK SWITCH-UNMANAGED 8 PORT

Search across all available documentation for this part.

Obsolete

RED LION CONTROLS

NETWORK SWITCH-UNMANAGED 8 PORT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	508FXE2-ST-40	508FXE2 Series

Configuration	Fixed	Fixed
Connector Type	ST, RJ45	ST, RJ45, SC
Copper Ports	6	6
Copper Type	10/100	10/100
Fiber Ports	2	2
Fiber Type	100BASE-FX (Singlemode)	100BASE-FX (Singlemode)
Mounting Type	DIN Rail	DIN Rail
Number of Ports	8	8
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Type	Switch - Unmanaged	Switch - Unmanaged, Switch - Advanced
Voltage - Input [Max]	30 V	30 V
Voltage - Input [Min]	10 V	10 V

NETWORK SWITCH-UNMANAGED 8 PORT

Part	Fiber Type	Type	Voltage - Input [Max]	Voltage - Input [Min]	Connector Type	Configuration	Fiber Ports	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Copper Ports	Mounting Type	Copper Type
RED LION CONTROLS 508FXE2-ST-40	100BASE-FX (Singlemode)	Switch - Unmanaged	30 V	10 V	RJ45, ST	Fixed	2	85 °C	-40 °C	8	6	DIN Rail	10/100
RED LION CONTROLS 508FXE2-A-ST-15	100BASE-FX (Singlemode)	Switch - Advanced	30 V	10 V	RJ45, ST	Fixed	2	85 °C	-40 °C	8	6	DIN Rail	10/100
RED LION CONTROLS 508FXE2-SC-15	100BASE-FX (Singlemode)	Switch - Unmanaged	30 V	10 V	RJ45, SC	Fixed	2	85 °C	-40 °C	8	6	DIN Rail	10/100
RED LION CONTROLS 508FXE2-N-SC-40	100BASE-FX (Singlemode)	Switch - Advanced	30 V	10 V	RJ45, SC	Fixed	2	85 °C	-40 °C	8	6	DIN Rail	10/100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Network Switch - Unmanaged 8 Ports

Technical documentation and resources

No documents available
