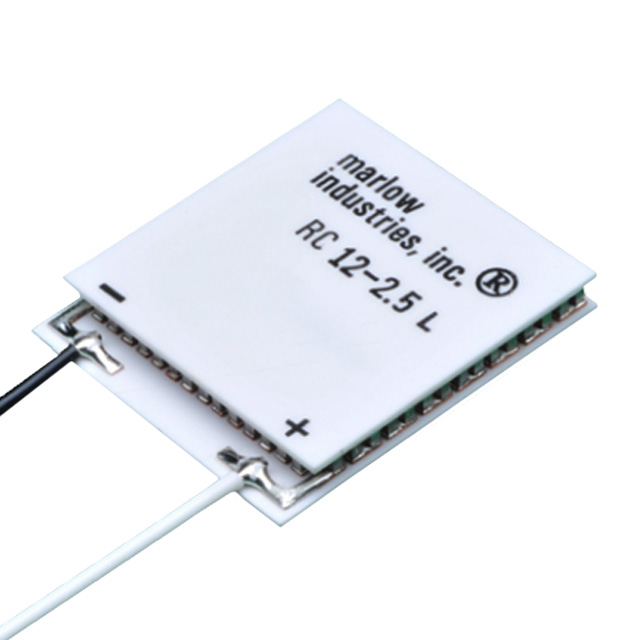

RC12-2.5-01LS

Active

Marlow Industries, Inc.

TEM 30X34X3.93MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 30X34X3.93MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 23.0W @ 27°C 2.5 A 130°C

Technical documentation and resources

Parameters and characteristics commom to parts in this series

TEM 29.97X29.97X3.33MM

Part	Resistance	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Number of Stages	Operating Temperature	Voltage - Max [Max]	Current - Max [Max]	Height [z]	Features	Qmax @ Th	Size / Dimension
Marlow Industries, Inc. RC12-4-01L	3.2 Ohms	34.04 mm	29.97 mm	66 °C	1	130 °C	14.7 V	3.7 A	3.33 mm	Lapped, Lead Wires	36 W
Marlow Industries, Inc. RC12-2.5-01S	4.9 Ohms	34.01 mm	30 mm	66 °C	1	130 °C	14.7 V	2.5 A	4.03 mm	Lead Wires, Sealed	23 W
Marlow Industries, Inc. RC12-6-01	2.2 Ohms	44.7 mm	40.13 mm	66 °C	1	130 °C	14.7 V	5.6 A	4.01 mm	Lead Wires	54 W	Rectangular
Marlow Industries, Inc. RC12-9-01	1.44 Ohms	44.7 mm	40 mm	65 °C	1	130 °C	14.1 V	8.4 A	3.61 mm	Lead Wires	78.6 W
Marlow Industries, Inc. RC12-4-01LS	3.2 Ohms	34.04 mm	29.97 mm	66 °C	1	130 °C	14.7 V	3.7 A	3.33 mm	Lapped, Lead Wires, Sealed	36 W
Marlow Industries, Inc. RC12-2.5-01	4.9 Ohms	34.01 mm	30 mm	66 °C	1	130 °C	14.7 V	2.5 A	4.03 mm	Lead Wires	23 W
Marlow Industries, Inc. RC12-2.5-01L	4.9 Ohms	34.01 mm	30 mm	66 °C	1	130 °C	14.7 V	2.5 A	3.93 mm	Lapped, Lead Wires	23 W
Marlow Industries, Inc. RC12-9-01L	1.44 Ohms	44.7 mm	40 mm	65 °C	1	130 °C	14.1 V	8.4 A	3.51 mm	Lapped, Lead Wires	78.6 W
Marlow Industries, Inc. RC12-6-01L	2.2 Ohms	44.7 mm	40.13 mm	66 °C	1	130 °C	14.7 V	5.6 A	3.91 mm	Lapped, Lead Wires	54 W	Rectangular
Marlow Industries, Inc. RC12-8-01LS	1.6 Ohms	44.7 mm	40.13 mm	66 °C	1	130 °C	14.7 V	7.4 A	3.53 mm	Lapped, Lead Wires, Sealed	71 W	Rectangular
