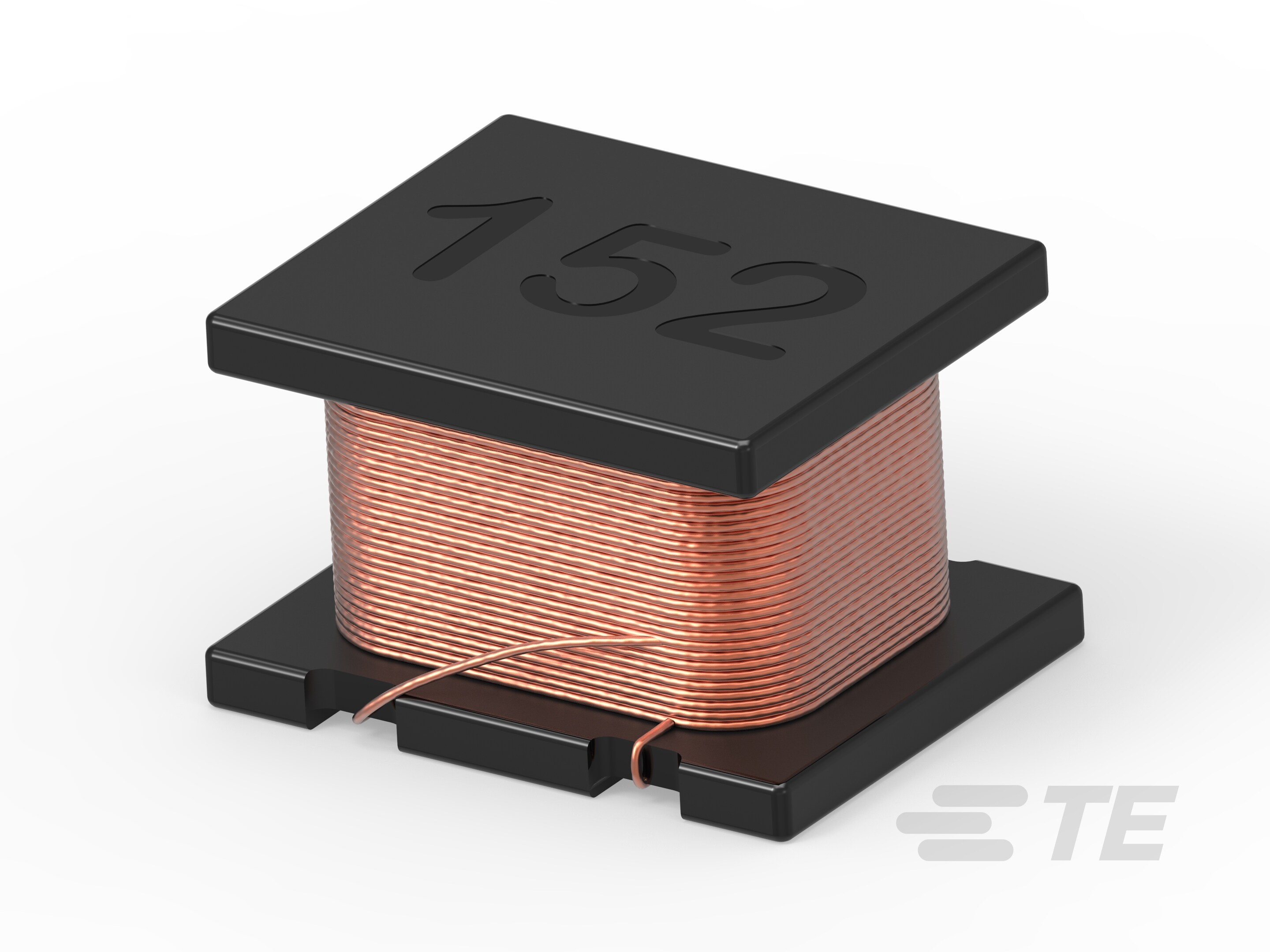

Specification	3627322520270K

Current Rating	0.125 A
DC Resistance (DCR) (Max)	3.1 Ohm
Height - Seated (Max)	0.091 in
Inductance	27 µH
Inductance Frequency - Test	1 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	1210 (3225 Metric)
Package Name	1210
Shielding	Unshielded
Size / Dimension Length	0.126 in
Size / Dimension Width	0.098 in
Tolerance	10 %
Type	Wirewound

Sigma 3627 Series

...

Part	Inductance Frequency - Test	Package Name	Supplier Device Package	DC Resistance (DCR) (Max)	Current Rating	Package / Case	Mounting Type	Type	Operating Temperature (Max)	Operating Temperature (Min)	Inductance	Height - Seated (Max)	Shielding	Material - Core	Size / Dimension Length	Size / Dimension Width	Tolerance	Frequency - Self Resonant
TE Connectivity AMP Connectors 3627575047C6R8M	1 MHz	2220	2220	104 mOhm	2 A	2220 (5750 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	6.8 µH	0.197 in	Unshielded	Ferrite	0.224 in	0.197 in	20 %
TE Connectivity AMP Connectors 3627575047C150K	1 MHz	2220	2220	210 mOhm	1.4 A	2220 (5750 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	15 µH	0.197 in	Unshielded	Ferrite	0.224 in	0.197 in	10 %
TE Connectivity AMP Connectors 36274532264R7K	1 MHz	1812		400 mOhm	0.5 A	1812 (4532 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	4.7 µH	0.118 in	Unshielded	Ferrite	0.177 in	0.126 in	10 %
TE Connectivity AMP Connectors 3627322515100K	1 MHz	1210		420 mOhm	0.45 A	1210 (3225 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	10 µH	0.073 in	Unshielded	Ferrite	0.126 in	0.098 in	10 %	26 MHz
TE Connectivity AMP Connectors 3627322520101K	1 MHz	1210		7 Ohm	0.08 A	1210 (3225 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	100 µH	0.091 in	Unshielded	Ferrite	0.126 in	0.098 in	10 %
TE Connectivity AMP Connectors 3627322515470K	1 MHz	1210		2.2 Ohm	0.17 A	1210 (3225 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	47 µH	0.073 in	Unshielded	Ferrite	0.126 in	0.098 in	10 %	13 MHz
TE Connectivity AMP Connectors 3627322520221K	1 MHz	1210		11.8 Ohm	0.065 A	1210 (3225 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	220 µH	0.091 in	Unshielded	Ferrite	0.126 in	0.098 in	10 %
TE Connectivity AMP Connectors 3627575047C1R5M	1 MHz	2220	2220	31 mOhm	3.7 A	2220 (5750 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	1.5 µH	0.197 in	Unshielded	Ferrite	0.224 in	0.197 in	20 %
TE Connectivity AMP Connectors 36273225201R0M	1 MHz	1210		500 mOhm	445 mA	1210 (3225 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	1 µH	0.091 in	Unshielded	Ferrite	0.126 in	0.098 in	20 %
TE Connectivity AMP Connectors 3627575047C680K	1 MHz	2220	2220	938 mOhm	0.64 A	2220 (5750 Metric)	Surface Mount	Wirewound	125 °C	-40 °C	68 µH	0.197 in	Unshielded	Ferrite	0.224 in	0.197 in	10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

ENG_CD_2176636_BA.pdf

Miniature_SMD_Power_Inductor-Type_3627_Series

3627322520270K | Datasheet
