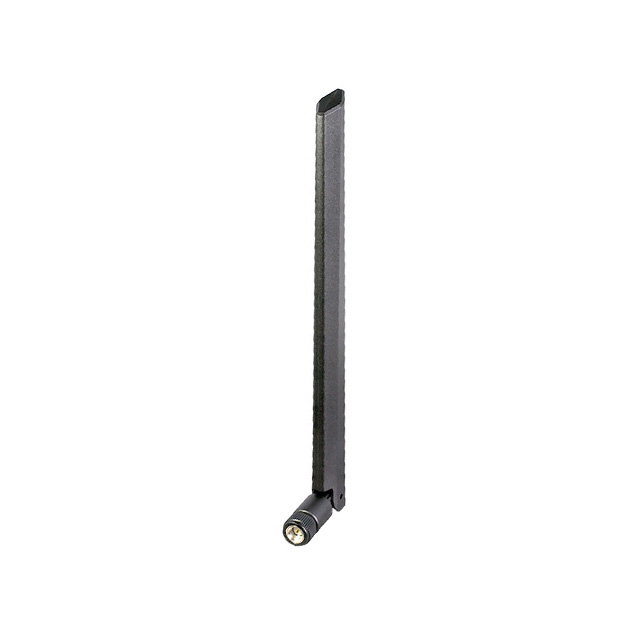

ANT-5GMWS1-SMA
ActiveTE Connectivity Linx
RF ANT 3.3GHZ-5.0GHZ 5G TILT SMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-5GMWS1-SMA
ActiveTE Connectivity Linx
RF ANT 3.3GHZ-5.0GHZ 5G TILT SMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-5GMWS1-SMA |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | GPRS, LTE, 5G |
| Frequency (Center/Band) | 4.965 GHz, 3.95 GHz, 3.625 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 4.99 GHz, 4.2 GHz, 3.7 GHz |
| Frequency Range [Min] | 3.55 GHz, 4.94 GHz, 3.7 GHz |
| Gain | 2.3 dBi, 5.9 dBi, 5.4 dBi |
| Height (Max) [Max] | 195 mm |
| Height (Max) [Max] | 7.677 in |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| Power - Max [Max] | 5 W |
| RF Family/Standard | Cellular, Navigation |
| VSWR | 1.3, 3.3, 3.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.15 | |
Description
General part information
ANT-5GMWS1-SMA
RF ANTENNA 5G, GPRS, LTE Whip, Tilt SMA Male Connector Mount
