TRD855SIGBLK-15
ActiveETHERNET CABLE, CAT5E, CAT5E, RJ45 PLUG TO RJ45 PLUG, SSTP (SCREENED SHIELDED TWISTED PAIR), BLACK
TRD855SIGBLK-15
ActiveETHERNET CABLE, CAT5E, CAT5E, RJ45 PLUG TO RJ45 PLUG, SSTP (SCREENED SHIELDED TWISTED PAIR), BLACK
Description
General part information
TRD855SIGBLK-15

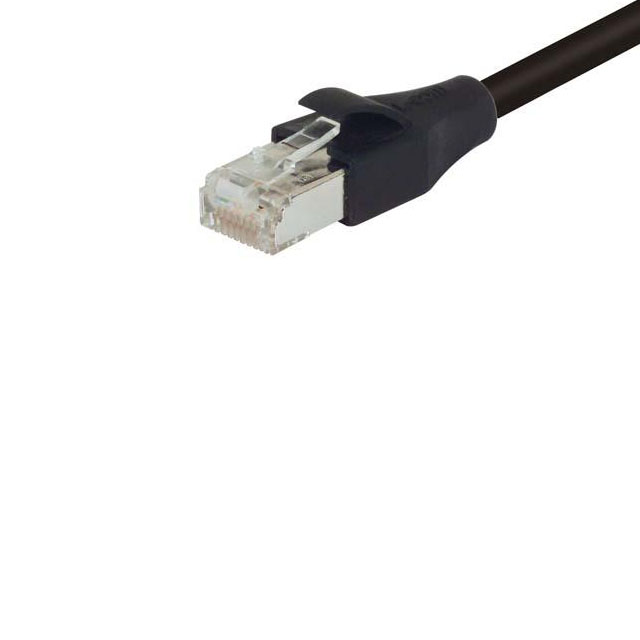

The TRD855SIGBLK-15 is a 15ft black CAT-5e Patch Cord with an UL94V-0 8P8C clear LSZH polycarbonate plug on each end. The cable comes with the shielded 4 twisted pair 24AWG solid bare copper conductors, LSZH thermoplastic snagless boots and a LSZH jacket. The RJ45 plug comes with the nickel-plated gold contacts.
Technical Specifications
Parameters and characteristics for this part
| Specification | TRD855SIGBLK-15 |
|---|---|
| Cable Type | Round Cable |
| Color | Black |
| Connector Type | Ethernet, RJ45, Plug to Plug |
| Features | Molded Plugs |
| Length | 15 ft |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Shielding | Shielded |
| Style | Cat5e |
