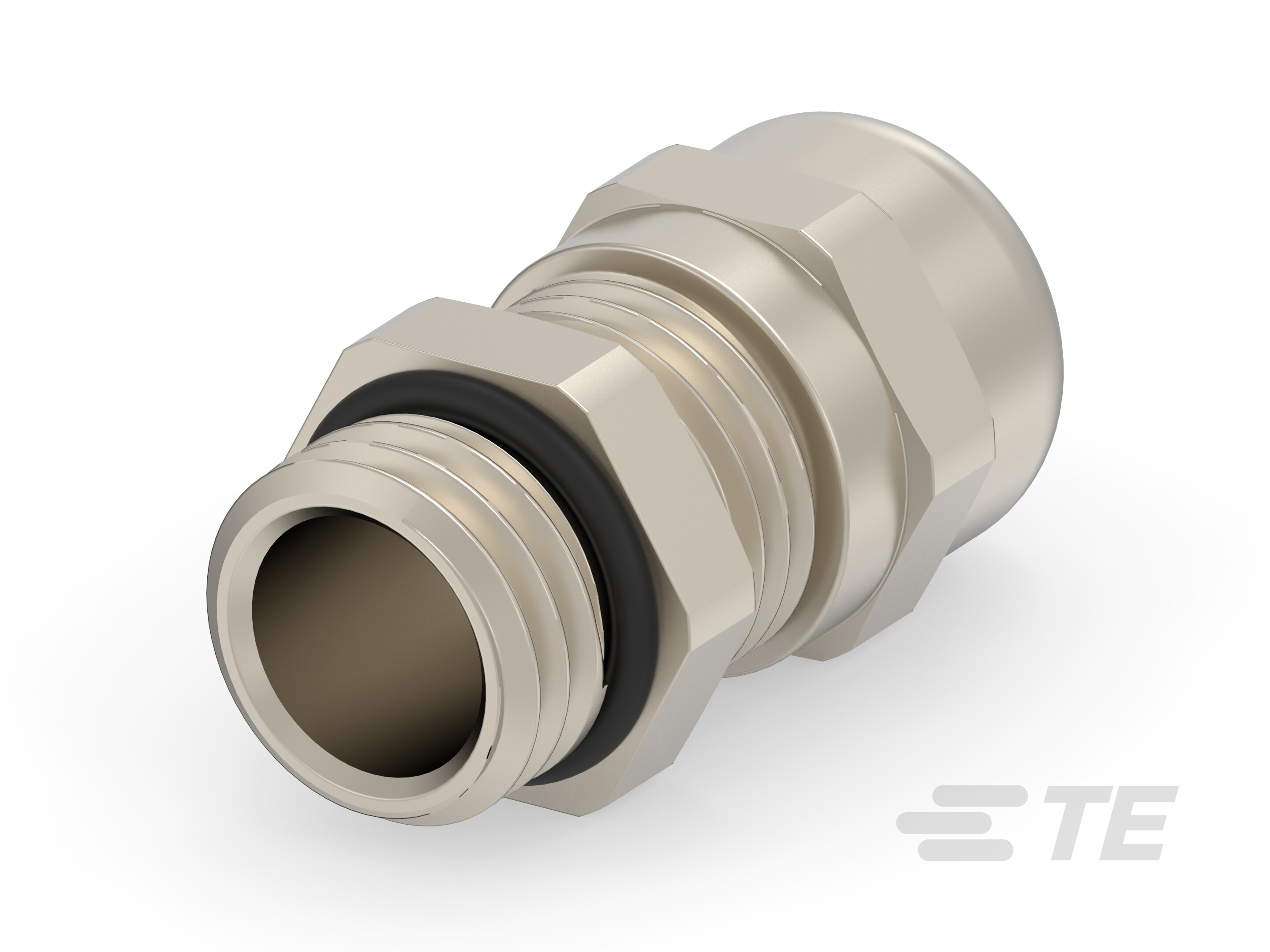

Specification	1SNG602003R0000

Color	Silver
Includes	Seal
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Nickel Plated, Brass
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	0.256 in
Outside Cable Diameter (Min)	0.118 in
Thread Diameter	12 mm
Thread Length	0.236 in, 0.87 in
Thread Pitch	1.5 mm
Type	Cable Gland
