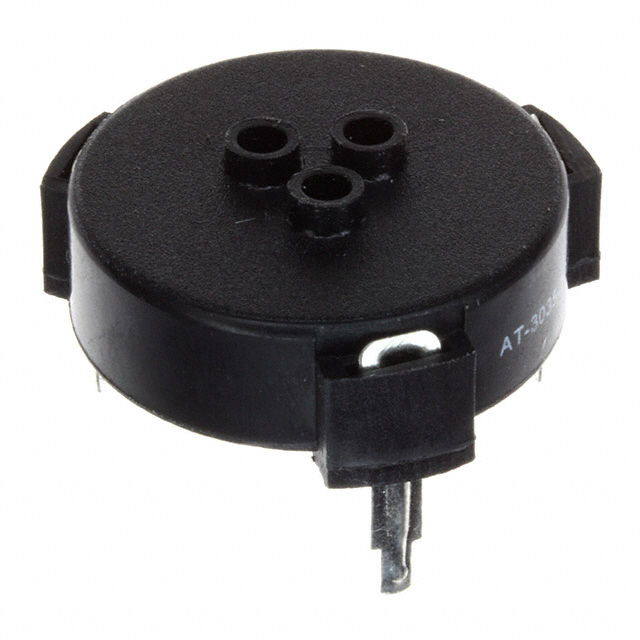

AT-3035-TT-R
ObsoletePUI Audio, Inc.
BUZZER PIEZO 12V 30MM TH
AT-3035-TT-R
ObsoletePUI Audio, Inc.
BUZZER PIEZO 12V 30MM TH
Description
General part information
AT-3035-TT-R
Buzzers Transducer, Externally Driven Piezo (with Feedback) 12 V 12mA 3.5kHz 75dB @ 12V, 10cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | AT-3035-TT-R |
|---|---|
| Current - Supply | 12 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 3.5 kHz |
| Height - Seated (Max) | 0.492 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Size / Dimension Diameter | 1.181 in |
| Sound Pressure Level (SPL) | 75 dB |
| Technology | Piezo (with Feedback) |
| Termination | PC Pins |
| Voltage - Rated | 12 VAC |
