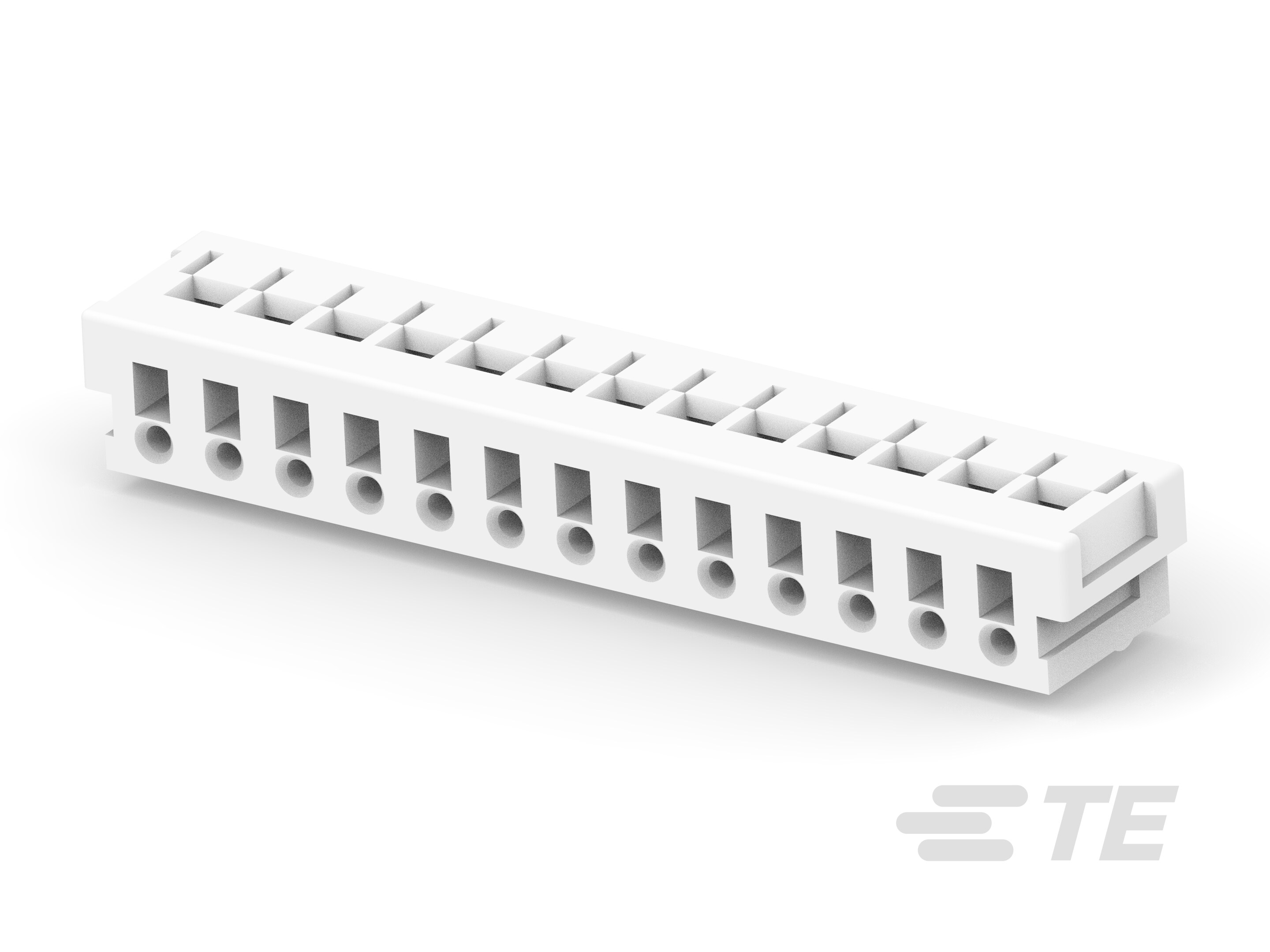

Specification	1-175778-3

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch	0.079 in

AMP CT Series

Part	Contact Finish - Post	Features	Number of Positions	Insulation Height	Voltage Rating	Style	Contact Finish - Mating	Contact Length - Post	Connector Type	Overall Contact Length	Number of Rows	Contact Material	Contact Shape	Pitch - Mating	Shrouding	Insulation Material	Termination	Mounting Type	Contact Length - Mating	Insulation Color	Material Flammability Rating	Current Rating	Current Rating	Fastening Type	Contact Type	Number of Positions Loaded	Row Spacing - Mating	Applications	Contact Finish	Color	Pitch	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Cable Termination	Wire Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Termination	Note
TE Connectivity AMP Connectors 292251-5	Tin	Board Guide	5	0.268 in	125 V	Board Cable/Wire	Tin	0.126 in	Header	0.358 in	1	Brass	Circular	0.079 in	Shrouded - 4 Wall	Nylon 6/6 Polyamide (PA66)	Kinked Pin Solder	Through Hole	0.165 in	Natural	UL94 V-0	0 A	Varies by Wire Gauge	Detent Lock	Male Pin	All
TE Connectivity AMP Connectors 2-292138-2	Tin	Board Lock	22	0.437 in	125 V	Board Cable/Wire	Tin	0.126 in	Header		2	Brass	Circular	0.079 in	Shrouded - 4 Wall	Nylon 6/6 Polyamide (PA66)	Solder	Right Angle Through Hole	0.185 in	Natural	UL94 V-0	0 A	Varies by Wire Gauge	Detent Lock	Male Pin	All	0.256 in
TE Connectivity AMP Connectors 292132-8	Tin		8	0.268 in	125 V	Board Cable/Wire	Tin	0.126 in	Header	0.358 in	1	Brass	Circular	0.079 in	Shrouded - 4 Wall	Nylon 6/6 Polyamide (PA66)	Kinked Pin Solder	Through Hole	0.165 in	Natural	UL94 V-0	0 A	Varies by Wire Gauge	Detent Lock	Male Pin	All
TE Connectivity AMP Connectors 1-292165-2	Tin		12	0.268 in	125 V	Board Cable/Wire	Tin	0.126 in	Header	0.358 in	1	Brass	Circular	0.079 in	Shrouded - 4 Wall	Nylon 6/6 Polyamide (PA66)	Kinked Pin Solder	Through Hole	0.165 in	Natural	UL94 V-0	0 A	Varies by Wire Gauge	Detent Lock	Male Pin	All
TE Connectivity AMP Connectors 1-292253-5	Tin		15	0.157 in	125 V	Board Cable/Wire	Tin	0.126 in	Header		1	Brass	Circular	0.079 in	Shrouded - 3 Wall	Nylon 6/6 Polyamide (PA66)	Kinked Pin Solder	Right Angle Through Hole	0.177 in	Natural	UL94 V-0	0 A	Varies by Wire Gauge	Detent Lock	Male Pin	All		General Purpose
TE Connectivity AMP Connectors 7-173977-2			12						Receptacle		1							Free Hanging (In-Line)							Female Socket				Tin	Black	0.079 in	26 AWG	28 AWG	IDC	Discrete
TE Connectivity AMP Connectors 2-179228-6			6						Receptacle		1					Nylon 6/6 Polyamide (PA66)		Free Hanging (In-Line)							Female Socket					Blue	0.079 in					-30 °C	105 °C	Crimp
TE Connectivity AMP Connectors 7-353908-1			11						Receptacle		1					Nylon 6/6 Polyamide (PA66)		Free Hanging (In-Line)							Female Socket					Blue	0.059 in					-30 °C	105 °C	Crimp	Contacts Not Included
TE Connectivity AMP Connectors 2-292138-8	Tin	Board Lock	28	0.437 in	125 V	Board Cable/Wire	Tin	0.126 in	Header		2	Brass	Circular	0.079 in	Shrouded - 4 Wall	Nylon 6/6 Polyamide (PA66)	Solder	Right Angle Through Hole	0.185 in	Natural	UL94 V-0	0 A	Varies by Wire Gauge	Detent Lock	Male Pin	All	0.256 in
TE Connectivity AMP Connectors 292161-6	Tin		6	0.268 in	125 V	Board Cable/Wire	Tin	0.126 in	Header	0.37 in	1	Brass	Circular	0.079 in	Shrouded - 3 Wall	Nylon 6/6 Polyamide (PA66)	Kinked Pin Solder	Through Hole	0.177 in	Natural	UL94 V-0	0 A	Varies by Wire Gauge	Detent Lock	Male Pin	All		General Purpose
