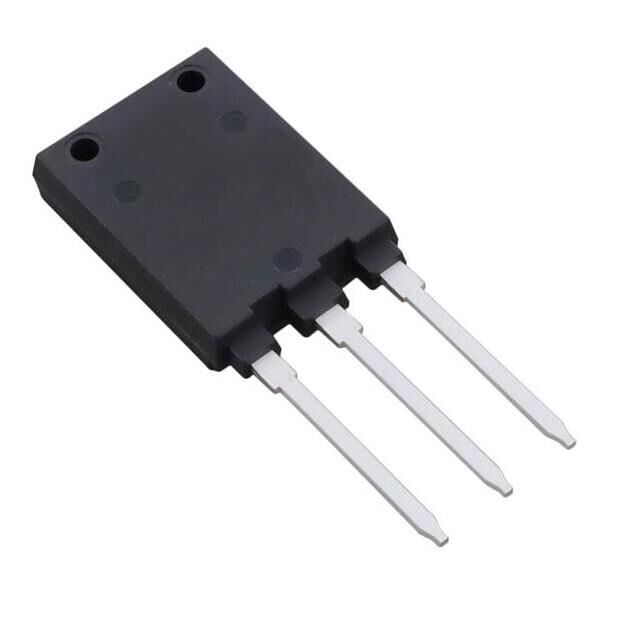

IKQB120N75CP2AKSA1
Hard-switching 750 V, 120 A EDT2 discrete in TO-247PLUS SMD package technology has been developed to fulfill the demand inCAV applicationssuch as delivery vehicles, trucks and bus drive inverters. The TO-247PLUS SMD package, an upgrade to the existingTO-247PLUS package, enabling package backside compatibility for reflow soldering at 245°C up to 3 times. This unique, delamination-free design delivers exceptional high power density and superior thermal management.
Technical Specifications
Parameters and characteristics for this part
| Specification | IKQB120N75CP2AKSA1 |
|---|---|
| Current - Collector (Ic) (Max) | 150 A |
| Current - Collector Pulsed (Icm) | 360 A |
| Gate Charge | 481 nC |
| Input Type | Standard |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | TO-247-3 |
| Package Name | PG-TO247-3-51 |
| Power - Max | 577 W |
| Switching Energy (Off) | 3.4 mJ |
| Switching Energy (On) | 6.4 mJ |
| Td (off) @ 25°C | 285 ns |
| Td (on) @ 25°C | 57 ns |
| Test Condition Current | 120 A |
| Test Condition Resistance | 4.8 Ohm |
| Test Condition Voltage | 450 V |
| Test Condition Voltage (Secondary) | 15 V |
| Vce(on) (Max) | 1.65 V |
| Voltage - Collector Emitter Breakdown (Max) | 750 V |
