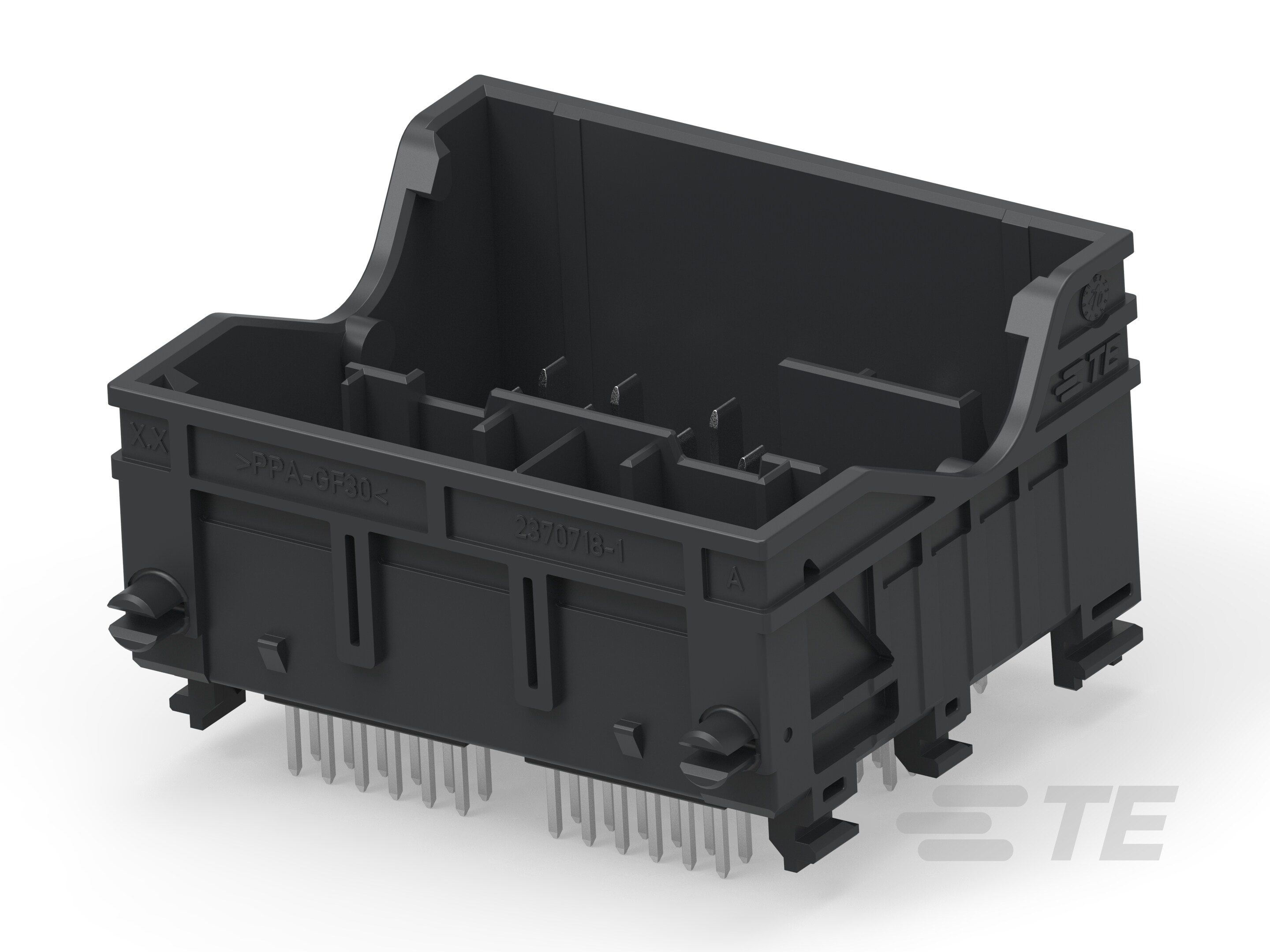

Specification	2370719-2

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.098 in
Contact Material	Copper Alloy
Contact Shape	Circular, Rectangular
Contact Type	Tab
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	1.157 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	52
Number of Positions Loaded	All
Number of Rows	7
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	0.681 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	12 V
