M3UYK-1660K

Active

IDC CABLE - MKS16K/MC16F/MPD16K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1700 Series +1

M3UYK-1660K

Active

IDC CABLE - MKS16K/MC16F/MPD16K

Deep-Dive with AI

DocumentsDatasheet 1700 Series +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.72
		10	$ 21.38
		25	$ 19.37
		50	$ 18.01
		100	$ 16.77
		250	$ 15.32
		500	$ 14.34

Description

General part information

M3UYK Series

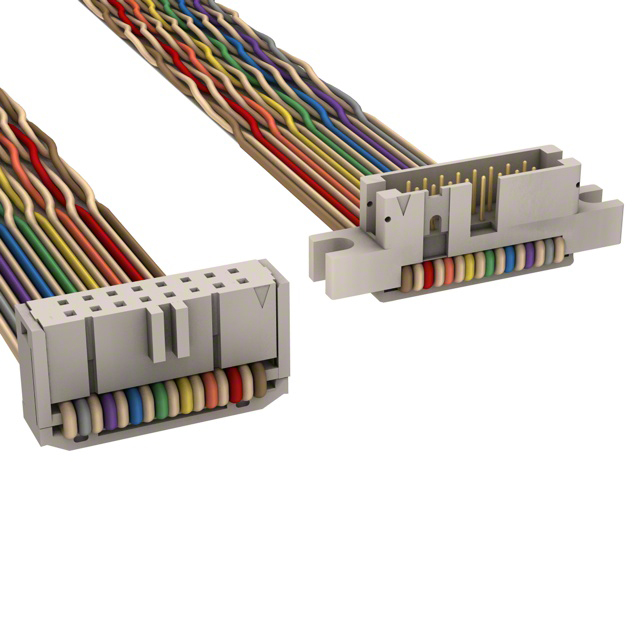

16 Position Cable Assembly Rectangular Socket to Plug 5.00' (1.52m)

Documents

Technical documentation and resources

Datasheet

1700 Series

Datasheet

4600 Series Drawing

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3UYK-1660K	M3UYK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Flange, Strain Relief (Socket), Polarizing Key, Strain Relief (Plug)	Flange, Strain Relief (Socket), Polarizing Key, Strain Relief (Plug)
Length	1.52 m	1.52 - 508 mm
Length	5 '	1.67 - 5 ft
Length	-	1.02 - 914.4 mm
Length	-	1.5 - 3.34 ft
Length	-	6 "
Length	-	0.5 '
Number of Positions	16	16
Number of Positions	-	10 - 60
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3UYK Series

IDC CABLE - MKS10K/MC10M/MPD10K

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Length [x]	Length [x]	Number of Rows	Pitch - Connector	Pitch - Connector	Cable Termination	Color	Number of Positions	Shielding	Pitch - Cable	Pitch - Cable	Features	Length	Length	Number of Positions	Length	Length
3M M3UYK-1018R	Gold	0.76 Ám	30 Áin	Socket to Plug	457.2 mm	1.5 ft	2	0.1 in	2.54 mm	IDC	Multiple, Ribbon	10	Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)
3M M3UYK-2620K	Gold	0.76 Ám	30 Áin	Socket to Plug			2	0.1 in	2.54 mm	IDC	Multiple, Twisted Pair (Flat)	26	Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	508 mm	1.67 ft
3M M3UYK-1606R	Gold	0.76 Ám	30 Áin	Socket to Plug			2	0.1 in	2.54 mm	IDC	Multiple, Ribbon		Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	152.4 mm		16	6 "	0.5 '
3M M3UYK-2436R	Gold	0.76 Ám	30 Áin	Socket to Plug	914.4 mm	3 ft	2	0.1 in	2.54 mm	IDC	Multiple, Ribbon	24	Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)
3M M3UYK-1036J	Gold	0.76 Ám	30 Áin	Socket to Plug	914.4 mm	3 ft	2	0.1 in	2.54 mm	IDC		10	Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)
3M M3UYK-5040K	Gold	0.76 Ám	30 Áin	Socket to Plug	1.02 m	3.34 ft	2	0.1 in	2.54 mm	IDC	Multiple, Twisted Pair (Flat)	50	Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)
3M M3UYK-3418J	Gold	0.76 Ám	30 Áin	Socket to Plug	457.2 mm	1.5 ft	2	0.1 in	2.54 mm	IDC		34	Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)
3M M3UYK-5006R	Gold	0.76 Ám	30 Áin	Socket to Plug			2	0.1 in	2.54 mm	IDC	Multiple, Ribbon	50	Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	152.4 mm			6 "	0.5 '
3M M3UYK-1620K	Gold	0.76 Ám	30 Áin	Socket to Plug			2	0.1 in	2.54 mm	IDC	Multiple, Twisted Pair (Flat)		Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	508 mm	1.67 ft	16
3M M3UYK-2040K	Gold	0.76 Ám	30 Áin	Socket to Plug	1.02 m	3.34 ft	2	0.1 in	2.54 mm	IDC	Multiple, Twisted Pair (Flat)	20	Unshielded	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)
