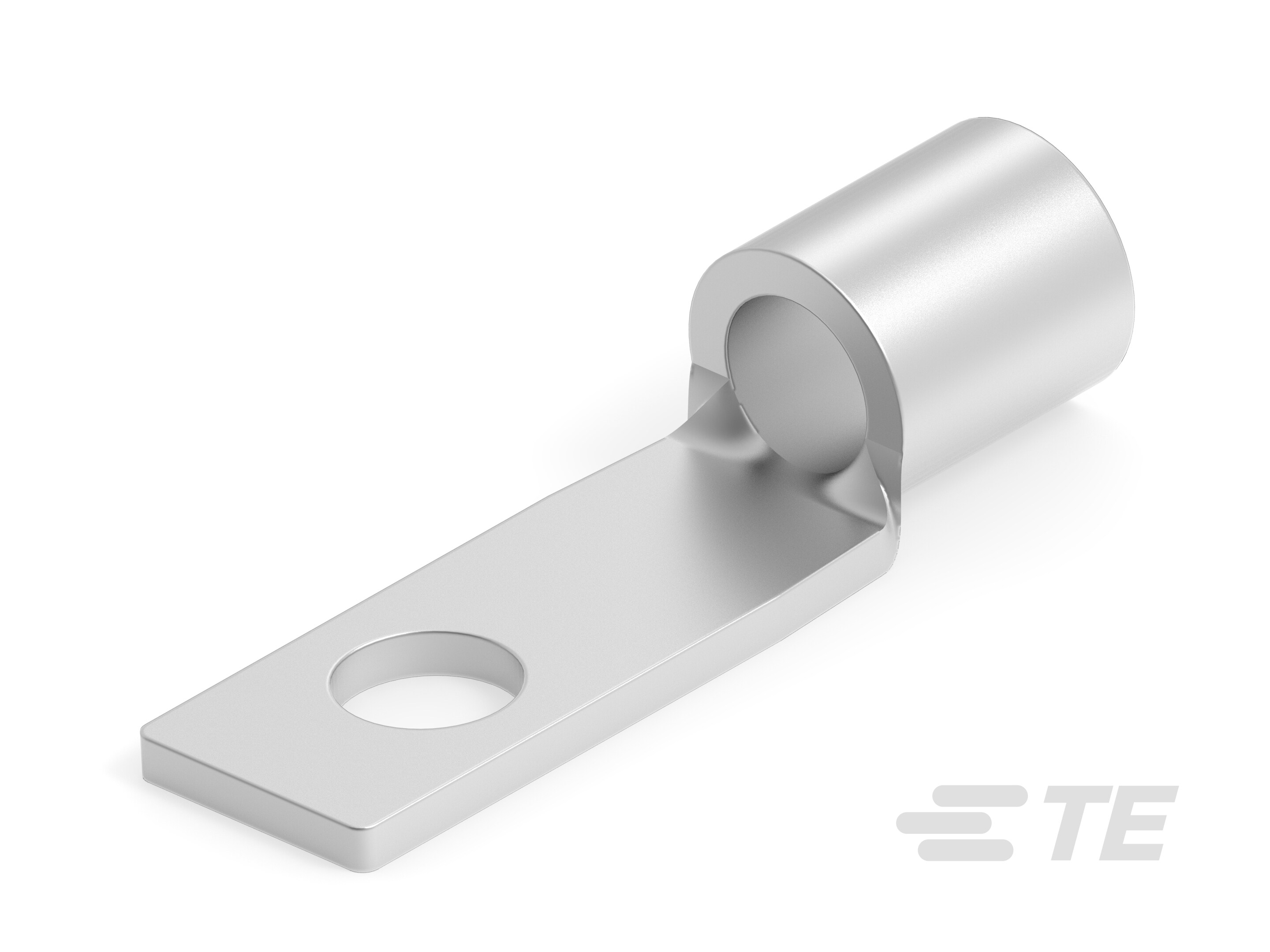

Specification	327959

Features	Serrated Termination
Insulation	Non-Insulated
Length - Overall	0.898 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Tab Thickness	0.039 in
Terminal Style	Single Stud Hole
Terminal Type	Rectangular Tongue
Termination	Crimp
Width - Outer Edges	0.237 in
Wire Gauge (AWG) (Max)	12 AWG
Wire Gauge (AWG) (Min)	10 AWG

SOLISTRAND Budget Series

...

Part	Tab Thickness	Features	Termination	Terminal Style	Terminal Type	Insulation	Stud/Tab Size	Mounting Type	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Width - Outer Edges	Thickness	Contact Finish	Contact Material	Stud/Tab Size	Length - Ring Center to Termination	Tongue Inside Opening	Length - Termination
TE Connectivity AMP Connectors 327951	0.031 in	Serrated Termination	Crimp	Single Stud Hole	Standard	Non-Insulated	5 Stud	Free Hanging (In-Line)	0.632 in	16 AWG	14 AWG	0.277 in
TE Connectivity AMP Connectors 30694		Serrated Termination	Crimp		Circular	Non-Insulated	12 Stud	Free Hanging (In-Line)	0.621 in	22 AWG	16 AWG	0.312 in	0.031 in	Tin	Copper
TE Connectivity AMP Connectors 32882		Serrated Termination	Crimp		Circular	Non-Insulated	10 Stud	Free Hanging (In-Line)	0.723 in	12 AWG	10 AWG	0.343 in	0.039 in	Tin	Copper
TE Connectivity AMP Connectors 130038			Crimp		Circular	Non-Insulated		Free Hanging (In-Line)	0.86 in	22 AWG	18 AWG	0.469 in	0.031 in	Tin	Copper	M6 M6 Stud
TE Connectivity AMP Connectors 31172		Serrated Termination	Crimp		Circular	Non-Insulated	0.25 Stud	Free Hanging (In-Line)	0.856 in	22 AWG	16 AWG	0.469 in	0.031 in	Tin	Copper
TE Connectivity AMP Connectors 320760		Serrated Termination	Crimp		Circular	Non-Insulated	0.5 Stud	Free Hanging (In-Line)	1.896 in	12 AWG	10 AWG	1.25 in	0.039 in	Tin	Copper
TE Connectivity AMP Connectors 51875-1		Serrated Termination	Crimp		Flanged	Non-Insulated	6 Stud	Free Hanging (In-Line)	0.471 in	26 AWG	22 AWG	0.25 in		Tin	Copper		0.203 in	0.145 in	0.135 in
TE Connectivity AMP Connectors 33718		Heavy Duty Serrated Termination	Crimp		Circular	Non-Insulated	10 Stud	Free Hanging (In-Line)	0.723 in	16 AWG	14 AWG	0.343 in	0.048 in	Tin	Copper
TE Connectivity AMP Connectors 322776		Serrated Termination	Crimp		Flanged	Non-Insulated	6 Stud	Free Hanging (In-Line)	0.514 in	22 AWG	16 AWG	0.25 in		Tin	Copper		0.203 in	0.145 in	0.181 in
TE Connectivity AMP Connectors 2-31425-3		Serrated Termination	Crimp		Circular	Non-Insulated	2 Stud	Free Hanging (In-Line)	0.329 in	26 AWG	22 AWG	0.14 in	0.018 in	Nickel	Copper
