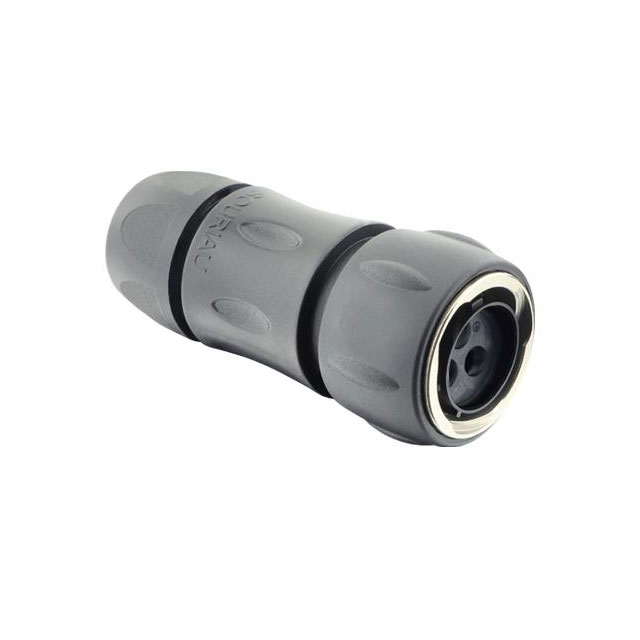

Specification	UTGX6JC142G1P

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	8
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell, Coupling Nut, UV Resistant
Housing Color	Black
Includes	O-Ring, Connector, Seal, Backshell
Includes Total Count	4 pcs
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Position Types	PE
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert	14-2G1
Shielding	Unshielded
Type	For Male Pins

UTGX6 Series

...

Part	Material Flammability Rating	Contact Material	Connector Type	Features	Termination	Current Rating Options	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Number of Positions	Position Types	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Applications	Voltage Rating	Fastening Type	Mounting Type	Shell Material	Orientation	Color	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Cable Opening (Min)	Cable Opening (Max)	Shell Size - Insert Width	Shell Size - Insert Length	Backshell Material, Plating	Current Rating	Includes	Includes Total Count	Contact Shape	Note	Housing Color	Type	Shell Size - Insert	Contact Type	Contact Size	Contact Finish - Mating
Amphenol Aerospace Operations UTGX614E15S	UL94 V-0	Brass	Female Sockets Plug	Coupling Nut UV Resistant	Solder Cup	12A 5A	Polychloroprene	-40 °C	105 °C	Unshielded	15	Power	14 S	15	Automation Industrial Instrumentation Testing Equipment	250 V 600 V	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Plastic
Amphenol Aerospace Operations UTGX6JC14E12P	UL94 V-0	Brass	Male Pins Plug	Backshell Coupling Nut UV Resistant	Solder Cup	10A 5A	Polychloroprene	-40 °C	105 °C	Unshielded	12	Power			Automation Industrial Instrumentation Testing Equipment	250 V 600 V	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Plastic	0.276 in	0.551 in	12 mm	14 mm	Nylon Polyamide (PA)
Amphenol Aerospace Operations UTGX6JC10E98S	UL94 V-0	Brass	Female Sockets Plug	Backshell Coupling Nut UV Resistant	Solder Cup		Polychloroprene	-40 °C	105 °C	Unshielded	6		10	98	Automation Industrial Instrumentation Testing Equipment	250 V	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Plastic	0.098 in	0.315 in			Nylon Polyamide (PA)	6 A
Amphenol Aerospace Operations UTGX6142G1P	UL94 V-0		Plug Housing	Coupling Nut UV Resistant			Nylon PA Polyamide	-40 °C	105 °C	Unshielded	3	PE					Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)		Dust Tight Water Resistant Waterproof	IP68 IP69K								Connector O-Ring Seal	3 pcs	Circular	Contacts Not Included	Black	For Male Pins	14-2G1	Crimp	8
Amphenol Aerospace Operations UTGX6JC1419S	UL94 V-0		Plug Housing	Backshell Coupling Nut UV Resistant			Nylon PA Polyamide	-40 °C	105 °C	Unshielded	19		14 S	19			Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)		Dust Tight Water Resistant Waterproof	IP68 IP69K								Backshell Connector O-Ring Seal	4 pcs	Circular	Contacts Not Included	Black	For Female Sockets		Crimp	20
Amphenol Aerospace Operations UTGX6JC124SSCR	UL94 V-0	Brass	Female Sockets Plug	Backshell Coupling Nut UV Resistant	Screw		Nylon PA Polyamide	-40 °C	105 °C	Unshielded	4	PE			Automation Industrial Instrumentation Testing Equipment	500 V	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Plastic	0.197 in	0.472 in			Nylon Polyamide (PA)	16 A										Gold
Amphenol Aerospace Operations UTGX614E19S	UL94 V-0	Brass	Female Sockets Plug	Coupling Nut UV Resistant	Solder Cup		Polychloroprene	-40 °C	105 °C	Unshielded	19		14 S	19	Automation Industrial Instrumentation Testing Equipment	250 V	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Plastic						4 A
Amphenol Aerospace Operations UTGX6JC12E10P	UL94 V-0	Brass	Male Pins Plug	Backshell Coupling Nut UV Resistant	Solder Cup		Polychloroprene	-40 °C	105 °C	Unshielded	10				Automation Industrial Instrumentation Testing Equipment	250 V	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Plastic	0.197 in	0.472 in	10 mm	12 mm	Nylon Polyamide (PA)	4.5 A
Amphenol Aerospace Operations UTGX6JC12E14S	UL94 V-0	Brass	Female Sockets Plug	Backshell Coupling Nut UV Resistant	Solder Cup		Polychloroprene	-40 °C	105 °C	Unshielded	14		12	14	Automation Industrial Instrumentation Testing Equipment	250 V	Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Plastic	0.197 in	0.472 in			Nylon Polyamide (PA)	4.5 A
Amphenol Aerospace Operations UTGX6JC102W2P	UL94 V-0		Plug Housing	Backshell Coupling Nut UV Resistant			Nylon PA Polyamide	-40 °C	105 °C	Unshielded	4						Bayonet Lock	Free Hanging (In-Line)	Nylon Polyamide (PA)	N (Normal)		Dust Tight Water Resistant Waterproof	IP68 IP69K								Backshell Connector O-Ring Seal	4 pcs	Circular	Contacts Not Included	Black	For Male Pins	10-2W2	Crimp	12 20
