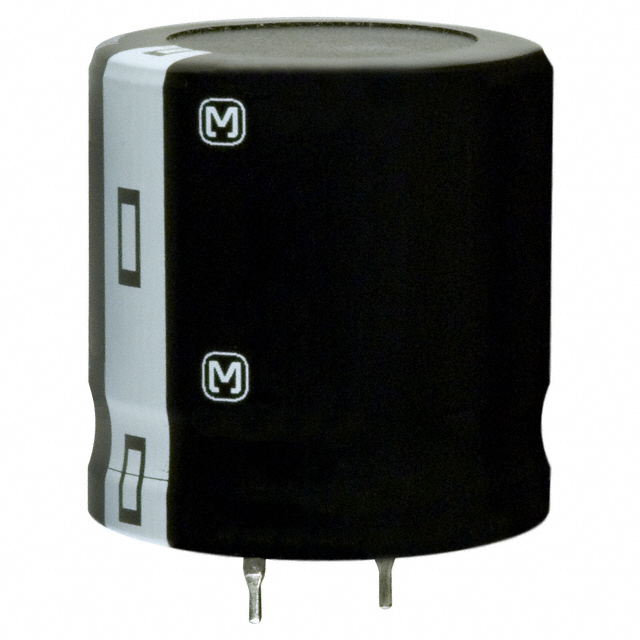

Specification	ECO-S2DA681DA

Applications	General Purpose
Capacitance	680 µF
ESR (Equivalent Series Resistance)	244 mOhm
Height - Seated (Max)	1.26 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	1.7 A, 2.38 A
Size / Dimension Diameter	1.181 in
Tolerance	20 %
Voltage - Rated	200 VDC

ECO-S2 Series

...

Part	Height - Seated (Max)	Mounting Type	Ripple Current	Voltage - Rated	Lead Spacing	Package / Case	ESR (Equivalent Series Resistance)	Operating Temperature (Min)	Operating Temperature (Max)	Capacitance	Applications	Tolerance	Lifetime	Polarization	Size / Dimension Diameter
Panasonic Electronic Components ECO-S2EP181AA	1.181 in	Through Hole	1.07 A 1.498 A	250 V	0.394 in	Can - Snap-In Radial	921 mOhm	-40 °C	85 °C	180 µF	General Purpose	20 %	2000 Hrs	Polar	0.787 in
Panasonic Electronic Components ECO-S2GB151DA	0.984 in	Through Hole	820 mA 934.8 mA	400 V	0.394 in	Can - Snap-In Radial	1.105 Ohm	-25 °C	105 °C	150 µF	General Purpose	20 %	3000 Hrs	Polar	1.181 in
Panasonic Electronic Components ECO-S2DB561DA	0.984 in	Through Hole	1.5 A 1.71 A	200 VDC	0.394 in	Can - Snap-In Radial	355 mOhm	-40 °C	105 °C	560 µF	General Purpose	20 %	3000 Hrs	Polar	1.181 in
Panasonic Electronic Components ECO-S2DP561BA	1.575 in	Through Hole	2.43 A 3.402 A	200 VDC	0.394 in	Can - Snap-In Radial	326 mOhm	-40 °C	85 °C	560 µF	General Purpose	20 %	3000 Hrs	Polar	0.866 in
Panasonic Electronic Components ECO-S2GP271EA	1.181 in	Through Hole	1.67 A 2.338 A	400 V	0.394 in	Can - Snap-In Radial	675 mOhm	-25 °C	85 °C	270 µF	General Purpose	20 %	3000 Hrs	Polar	1.378 in
Panasonic Electronic Components ECO-S2EP181BA	0.984 in	Through Hole	1.07 A 1.498 A	250 V	0.394 in	Can - Snap-In Radial	921 mOhm	-40 °C	85 °C	180 µF	General Purpose	20 %	3000 Hrs	Polar	0.866 in
Panasonic Electronic Components ECO-S2HP271EA	1.575 in	Through Hole	1.76 A 2.464 A	500 V	0.394 in	Can - Snap-In Radial	614 mOhm	-25 °C	85 °C	270 µF	General Purpose	20 %	3000 Hrs	Polar	1.378 in
Panasonic Electronic Components ECO-S2EP271BA	1.181 in	Through Hole	1.31 A 1.834 A	250 V	0.394 in	Can - Snap-In Radial	614 mOhm	-40 °C	85 °C	270 µF	General Purpose	20 %	3000 Hrs	Polar	0.866 in
Panasonic Electronic Components ECO-S2DP102EA	1.181 in	Through Hole	3.25 A 4.55 A	200 VDC	0.394 in	Can - Snap-In Radial	199 mOhm	-40 °C	85 °C	1000 µF	General Purpose	20 %	3000 Hrs	Polar	1.378 in
Panasonic Electronic Components ECO-S2DP271BA	0.984 in	Through Hole	1.41 A 1.974 A	200 VDC	0.394 in	Can - Snap-In Radial	614 mOhm	-40 °C	85 °C	270 µF	General Purpose	20 %	3000 Hrs	Polar	0.866 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ECO-S2DA681DA | Datasheet
