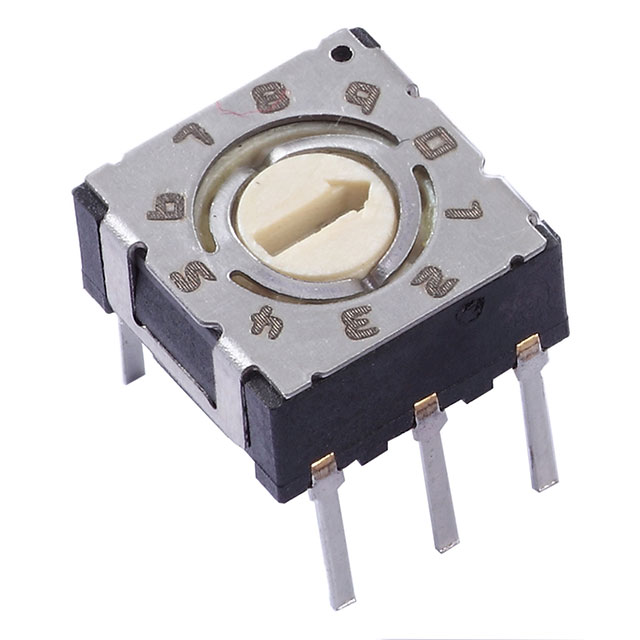

220ADA10
ActiveCTS Electrocomponents
SWITCH ROTARY DIP BCD 0.1A 50V
220ADA10
ActiveCTS Electrocomponents
SWITCH ROTARY DIP BCD 0.1A 50V
Description
General part information
220ADA10
Dip Switch BCD 10 Position Through Hole Rotary for Tool Actuator 100mA 50VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 220ADA10 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | BCD |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Current Rating | 100 mA |
| Electrical Life (Steps) | 10000 Steps |
| Height Above Board | 0.144 in |
| Length | 0.283 in |
| Mechanical Life (Steps) | 10000 Steps |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | PC Pin |
| Voltage Rating | 50 V |
| Washable | No |
