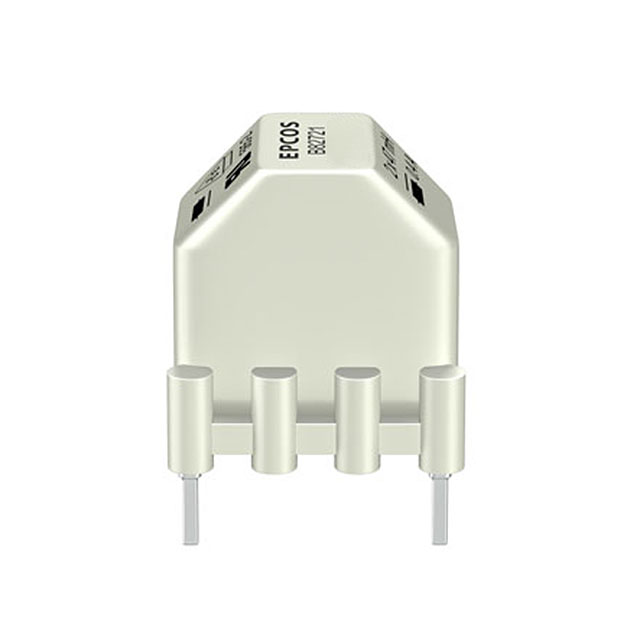

B82721K2282U030
ActiveEPCOS - TDK Electronics
CMC 4UH 2.8A 2LN TH
B82721K2282U030
ActiveEPCOS - TDK Electronics
CMC 4UH 2.8A 2LN TH
Description
General part information
B82721K2282U030
4 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2.8A DCR 45mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | B82721K2282U030 |
|---|---|
| Approval Agency | VDE, UR, ENEC |
| Current Rating (Max) | 2.8 A |
| DC Resistance (DCR) (Max) | 45 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.803 in |
| Inductance | 4 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.717 in |
| Size / Dimension Width | 0.52 in |
| Voltage Rating - AC | 250 V |
