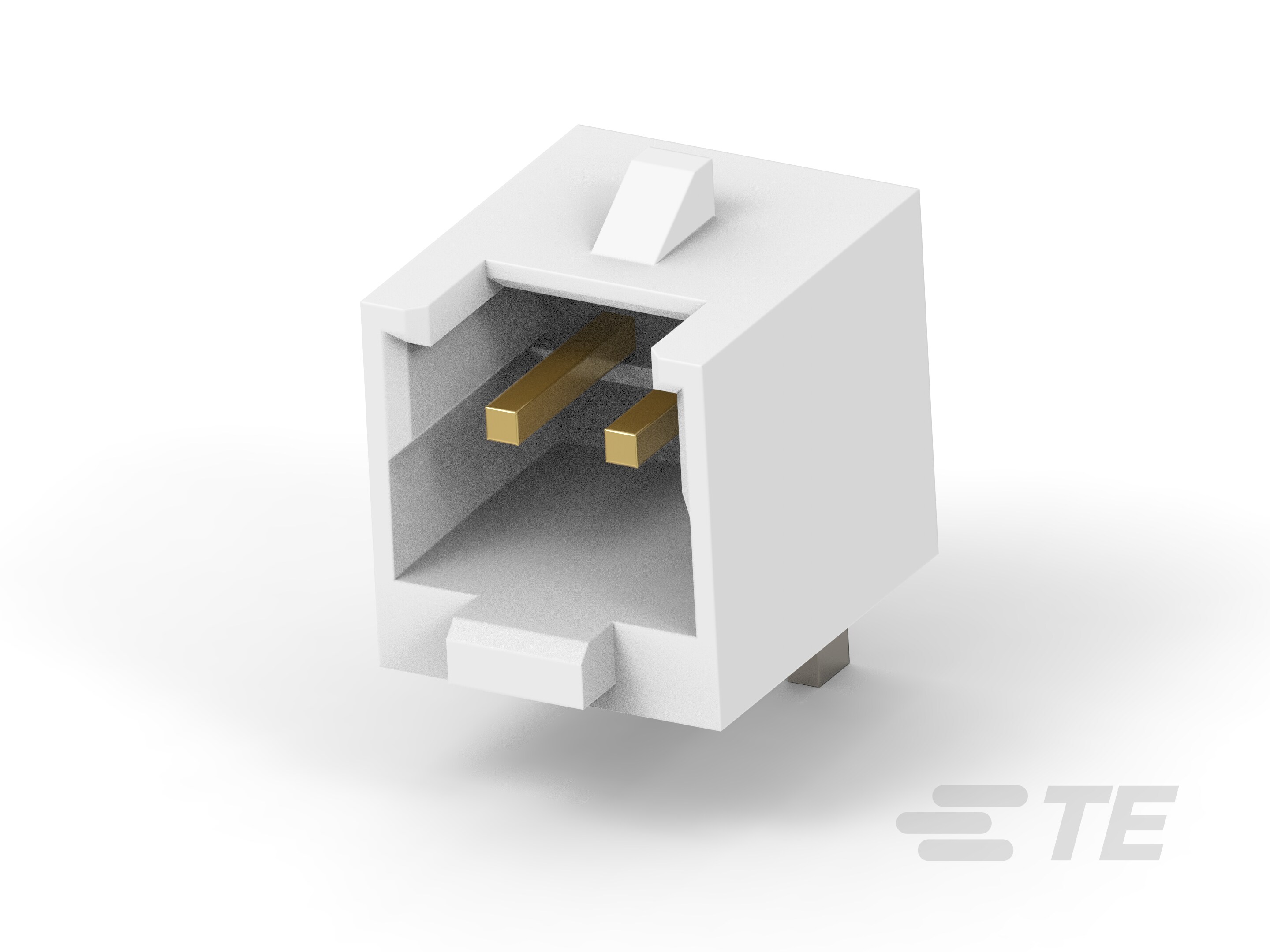

1.5P 2POS WTB VERT BRD W LATCH AU NAT-2-2380320-2

2-2380320-2

Active
TE Connectivity AMP Connectors

1.5P 2POS WTB VERT BRD W LATCH AU NAT

Find alt
1.5P 2POS WTB VERT BRD W LATCH AU NAT-2-2380320-2

2-2380320-2

Active
TE Connectivity AMP Connectors

1.5P 2POS WTB VERT BRD W LATCH AU NAT

Find alt

Description

General part information

2-2380320-2

PCB Mount Header, Wire-to-Board, 2 Position, 1.5 mm [.059 in] Centerline, Fully Shrouded, Gold Flash, Surface Mount, Power & Signal, Natural, HPI

Technical Specifications

Parameters and characteristics for this part

Specification2-2380320-2
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - MatingFlash
Contact Length - Mating0.106 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypeLocking Ramp
FeaturesSolder Retention, Pick and Place
Insulation ColorNatural
Insulation Height0.197 in
Insulation MaterialHalogen Free, Plastic
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.059 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating50 V
