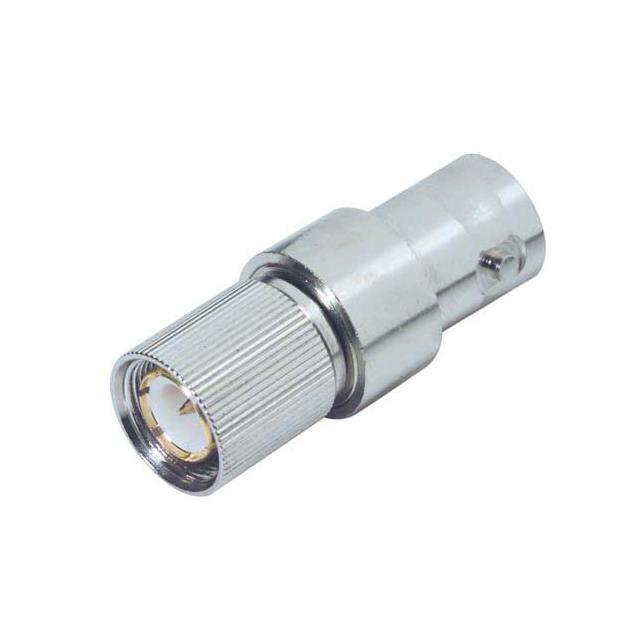

BA9201
ActivePasternack
ADAPTOR BNC F/1.6/5.6 M
BA9201
ActivePasternack
ADAPTOR BNC F/1.6/5.6 M
Description
General part information
BA9201
Adapter Coaxial Connector BNC Jack, Female Socket To 1.6/5.6 Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA9201 |
|---|---|
| Adapter Series | BNC to 1.6/5.6 |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | 1.6/5.6 Plug |
| Dielectric Material | Polyoxymethylene (POM) |
| Fastening Type | Threaded, Bayonet Lock |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
