47-10070

47-10070

Active
McGill Microwave Systems

CRIMP TOOL, RATCHET, RF COAXIAL CONNECTORS, AMPHENOL RF CONNEX 47 SERIES

Find alt

Description

General part information

47-10 Series

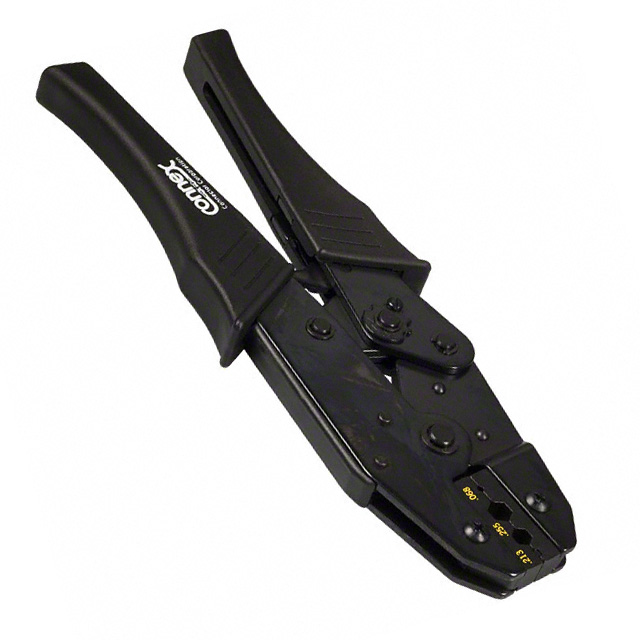

The 47-10070 is a Complete Crimp Tool with die set for use with RG 55/58/59/62/141/142/233/303/400/8X LMR195/200/240 cables. For 0.068, 0.213 and 0.255-inch hex crimping. The 47 series coax crimp tool utilizes industry-standard crimp die-set dimensions. Die set will terminate all popular coaxial cable. Full ratchet crimp action ensures ferrules and contacts are fully crimped before tool releases.

Technical Specifications

Parameters and characteristics for this part

Specification47-10070
For Use With/Related ProductsRF Connectors, Coaxial
RatchetingRatchet
Tool MethodManual
Tool TypeHand Crimper
Wire Entry LocationSide Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
