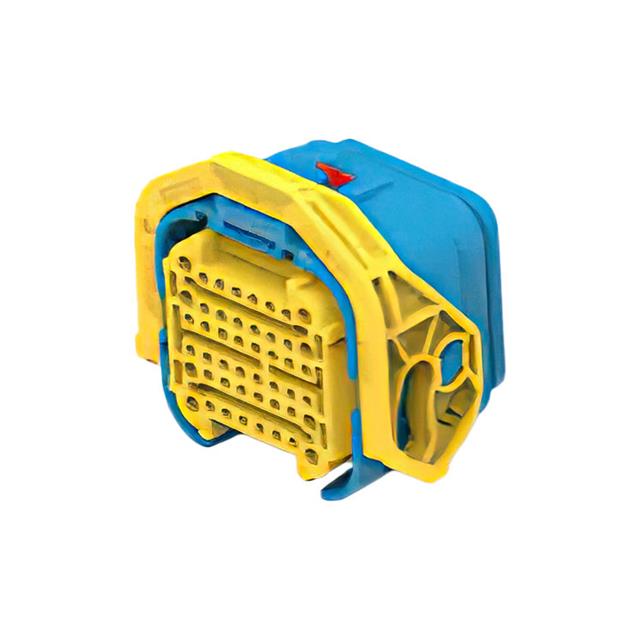

2366494-4
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 48POS,HYBRID,SOC HSG ASSY,SLD,COD D
2366494-4
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 48POS,HYBRID,SOC HSG ASSY,SLD,COD D
Description
General part information
DEUTSCH NTSEAL Series
48 Position Housing, Plug, Wire-to-Wire, 1.75 mm [.068 in] Centerline, Sealable, Blue, Wire & Cable, Cable Mount (Free-Hanging), DEUTSCH NTSEAL
Technical Specifications
Parameters and characteristics for this part
| Specification | 2366494-4 |
|---|---|
| Color | Blue |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Features | Sealed, Terminal Position Assurance (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Number of Rows | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
