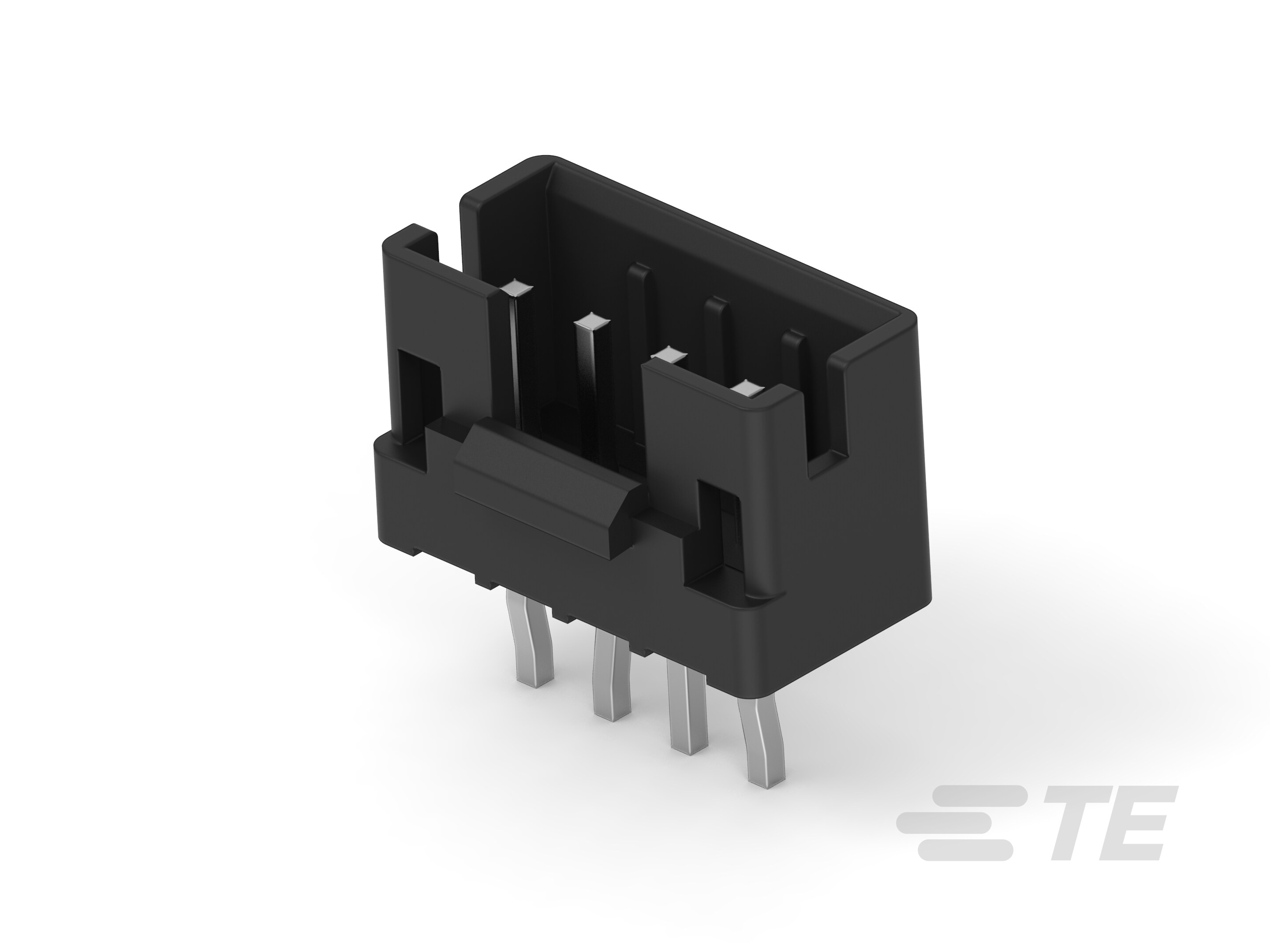

Specification	2-1735446-4

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.132 in
Contact Length - Post	0.134 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.239 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.079 in
Shrouding	Shrouded - 3 Wall
Style	Cable/Wire, Board
Termination	Press-Fit, Solder
Voltage Rating	250 V
