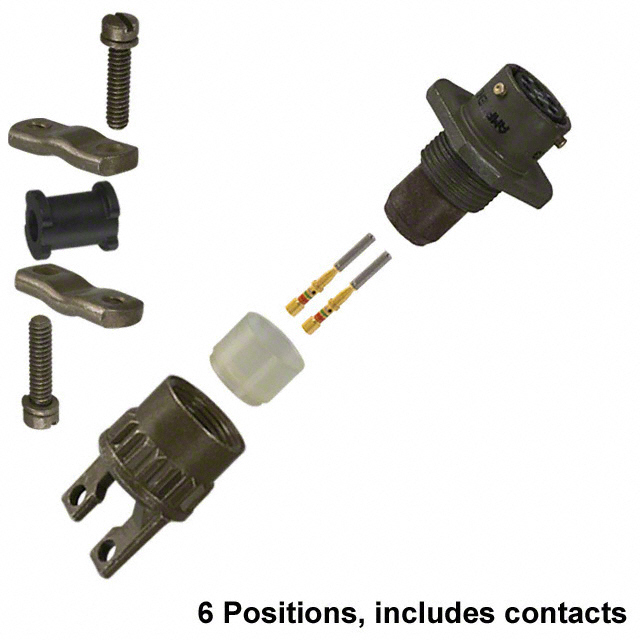

MS3121F-10-6S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3121F-10-6S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3121F-10-6S | MS3121F10 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 76.73 | |
| 10 | $ 70.41 | |||
| 25 | $ 67.71 | |||
| 50 | $ 65.45 | |||
| 100 | $ 61.84 | |||
MS3121F10 Series
CONN RCPT FMALE 6POS GOLD CRIMP
| Part | Shell Size - Insert | Grade | Shielding | Backshell Material, Plating | Color | Primary Material | Qualification | Contact Finish - Mating | Applications | Features | Ingress Protection | Shell Material | Shell Finish | Orientation | Mounting Type | Contact Material | Termination | Fastening Type | Insert Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3121F-10-6S | 10-6 | Military | Unshielded | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Metal | MIL-DTL-26482 Series I | Gold | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Backshell, Cable Clamp | Environment Resistant | Aluminum | Olive Drab Chromate over Cadmium | N | Free Hanging (In-Line) | Copper Alloy | Crimp | Bayonet Lock | Neoprene | Receptacle, Female Sockets | -55 °C | 125 °C | 6 |
Amphenol Industrial Operations MS3121F10-6SW | 10-6 | Military | Unshielded | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Metal | MIL-DTL-26482 Series I | Gold | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Backshell, Cable Clamp | Environment Resistant | Aluminum | Olive Drab Chromate over Cadmium | W | Free Hanging (In-Line) | Copper Alloy | Crimp | Bayonet Lock | Neoprene | Receptacle, Female Sockets | -55 °C | 125 °C | 6 |
Description
General part information
MS3121F10 Series
6 Position Circular Connector Receptacle, Female Sockets Crimp
