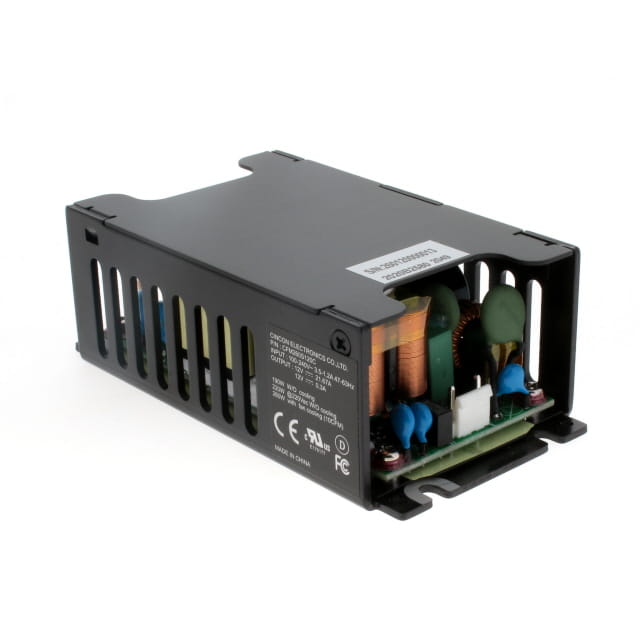

CFM260S120C
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 12V 260W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFM260S120C
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 12V 260W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM260S120C |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Current - Output 1 | 21.67 A |
| Efficiency | 92 % |
| Features | PFC, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 260 W |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [y] | 2.52 " |
| Size / Dimension [y] | 64 mm |
| Size / Dimension [z] | 1.59 " |
| Size / Dimension [z] | 40.5 mm |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 82.42 | |
| 5 | $ 79.92 | |||
| 10 | $ 77.42 | |||
| 25 | $ 74.92 | |||
| 50 | $ 72.43 | |||
| 100 | $ 70.88 | |||
Description
General part information
CFM260S120C
Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
