99107

Obsolete

Thomas Research Products

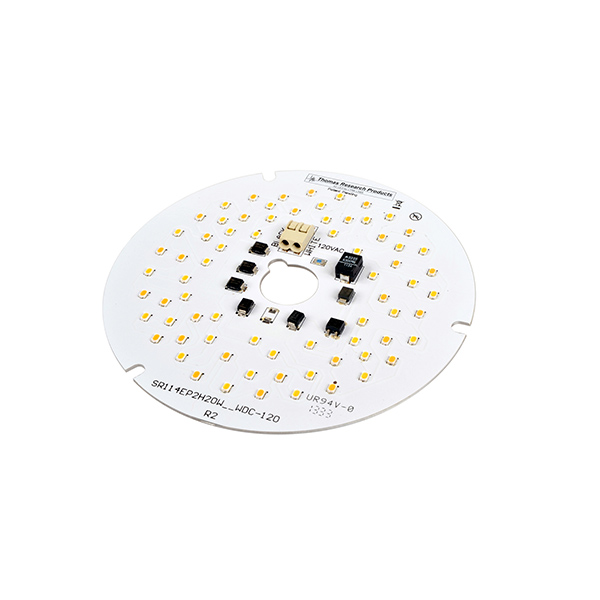

LED ENG WARM WHT ROUND 2500K

Search across all available documentation for this part.

Obsolete

Thomas Research Products

LED ENG WARM WHT ROUND 2500K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Engine - White, Warm Round

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	99107	- Series

CCT (K)	2500 K	2500 - 2700 K
Color	White, Warm	White, Warm, Blue, Red
Configuration	Round	Square, Linear Light Strip, Starboard, Round
Current - Max [Max]	250 mA	75 - 400 mA
Current - Test	200 mA	1.25 - 300 mA
Features	Dimming - Warm	Dimming - Warm
Height [z]	6 mm	1.61 - 6 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	74 lm/W	52 - 74 lm/W
Luminous Flux @ Current/Temperature	1787 lm	31 - 1787 lm
Size / Dimension	-	11 - 29.01 mm
Size / Dimension	-	11 - 300.61 mm
Size / Dimension [diameter]	108.2 mm	9.9 - 108.2 mm
Type	LED Engine	LED Engine, LED Module
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	120 VAC	12 - 120 VAC
Wavelength	-	460 - 660 nm

LED ENG WARM WHT SQUARE 3000K

Part	Color	Lumens/Watt @ Current - Test	Viewing Angle	Current - Test	Lens Type	Height [z]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Configuration	Size / Dimension [y]	Size / Dimension [x]	Type	Wavelength	Size / Dimension [diameter]	CCT (K)	Features
Thomas Research Products 99188	Warm, White	62 lm/W	120 °	300 mA	Flat	1.8 mm	400 mA	12 VAC	224 lm	Square	11 mm	11 mm	LED Engine
Thomas Research Products 132541	Blue, Red			1.25 A						Linear Light Strip	29.01 mm	300.61 mm	LED Module	460 nm, 660 nm
Thomas Research Products 99223	Warm, White	52 lm/W	120 °	50 mA	Flat	1.61 mm	75 mA	12 VAC	31 lm	Starboard			LED Engine		9.9 mm	2700 K
Thomas Research Products 99107	Warm, White	74 lm/W	120 °	200 mA	Flat	6 mm	250 mA	120 VAC	1787 lm	Round			LED Engine		108.2 mm	2500 K	Dimming - Warm
