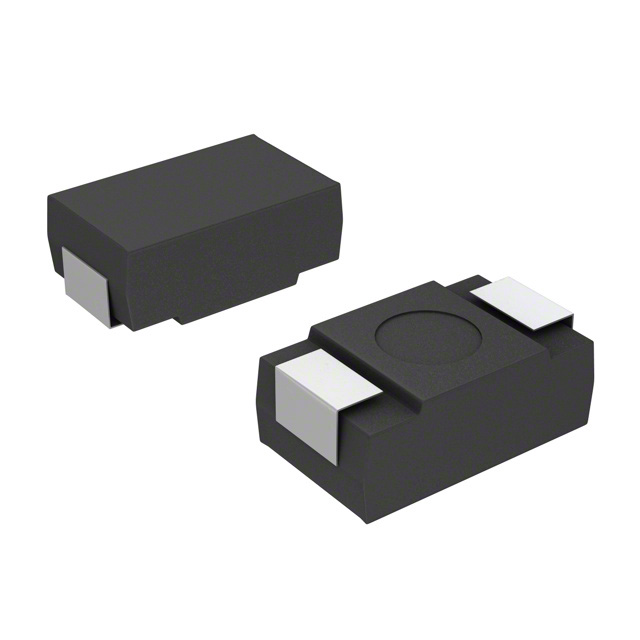

CWR29KB334JCAC
ActiveKYOCERA AVX
CAP TANT 0.33UF 5% 25V 1005
CWR29KB334JCAC
ActiveKYOCERA AVX
CAP TANT 0.33UF 5% 25V 1005
Description
General part information
CWR29KB334JCAC
0.33 µF Molded Tantalum Capacitors 25 V 1005 (2512 Metric) 7.5Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR29KB334JCAC |
|---|---|
| Capacitance | 0.33 µF |
| ESR (Equivalent Series Resistance) | 7.5 Ohm |
| Failure Rate (Percent) | 0.01 % |
| Failure Rate Rating | C |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) | 0.065 in |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1005 (2512 Metric) |
| Qualification | 11, MIL-PRF-55365 |
| Size / Dimension Length | 0.1 in |
| Size / Dimension Width | 0.05 in |
| Tolerance | 5 % |
| Type | Molded |
| Voltage - Rated | 25 VAC |
