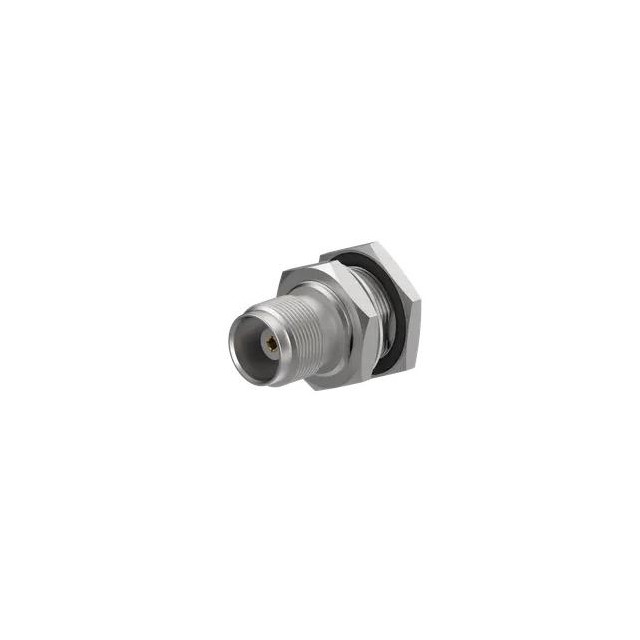

27_TNC-50-0-1/133_NE
ActiveHuber+Suhner, Inc.
27_TNC-50-0-1/133_NE
27_TNC-50-0-1/133_NE
ActiveHuber+Suhner, Inc.
27_TNC-50-0-1/133_NE
Description
General part information
27_TNC-50-0-1/133_NE
27_TNC-50-0-1/133_NE
Technical Specifications
Parameters and characteristics for this part
| Specification | 27_TNC-50-0-1/133_NE |
|---|---|
| Center Contact Material | Beryllium Copper, Brass |
| Connector Style | TNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Cup |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
