Description
General part information

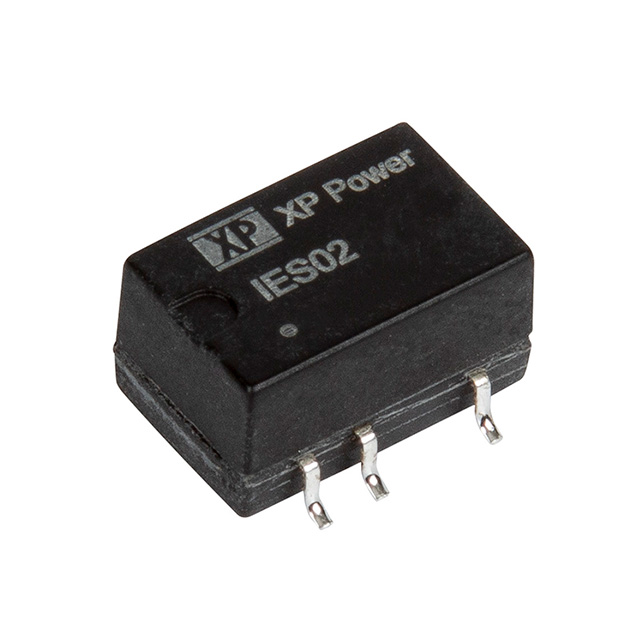

IES0215S15
Isolated Module DC DC Converter 1 Output 15V 133mA 13.5V - 16.5V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | IES0215S15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UL, UKCA |
| Current - Output (Max) | 133 mA |
| Efficiency | 84 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Leads |
| Package Name | 8-SMD Module |
| Power (Watts) | 1.995 W |
| Size / Dimension Height | 0.29 in |
| Size / Dimension Length | 0.52 in |
| Size / Dimension Width | 0.33 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 16.5 V |
| Voltage - Input (Min) | 13.5 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 15 V |
