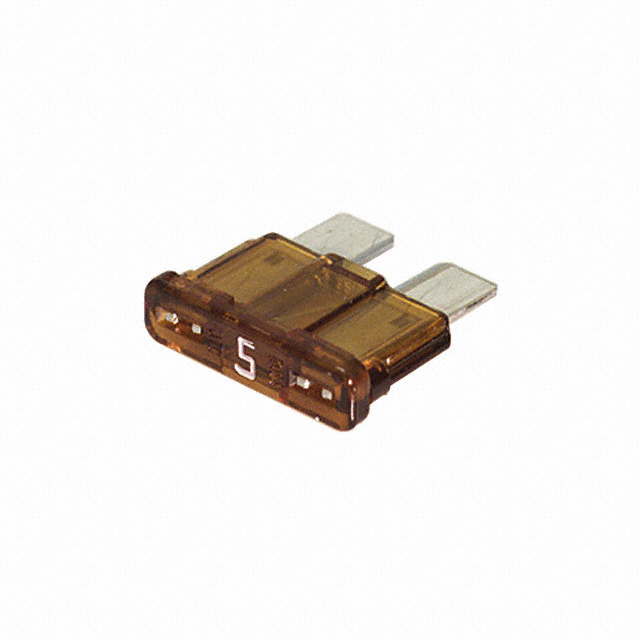

BP/ATC-5
ObsoleteEaton - Electronics Division
FUSE AUTO 5A 32VDC BLADE ATO/ATC
BP/ATC-5
ObsoleteEaton - Electronics Division
FUSE AUTO 5A 32VDC BLADE ATO/ATC
Description
General part information
BP/ATC-5
5 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
Technical Specifications
Parameters and characteristics for this part
| Specification | BP/ATC-5 |
|---|---|
| Approval Agency | UL |
| Breaking Capacity | 1 kA |
| Color | Tan |
| Current Rating | 5 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | ATO/ATC, Blade |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.492 in |
| Size / Dimension Length | 0.76 in |
| Size / Dimension Width | 0.207 in |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
