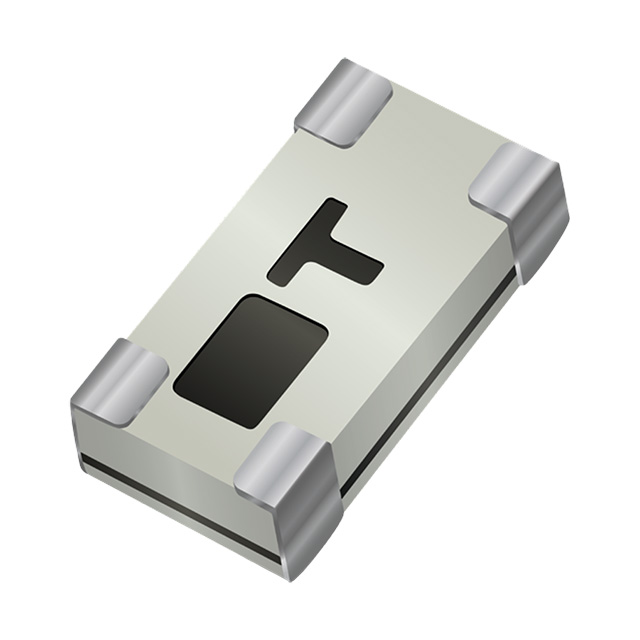

HP1206A1100ASTR\500
ActiveKYOCERA AVX
RF FILTER HIGH PASS 1206
HP1206A1100ASTR\500
ActiveKYOCERA AVX
RF FILTER HIGH PASS 1206
Description
General part information
HP1206A1100ASTR\500
1.1GHz Frequency High Pass RF Filter (Radio Frequency) Bandwidth 1dB 1206 (3216 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | HP1206A1100ASTR\500 |
|---|---|
| Filter Type | High Pass |
| Frequency | 1100 MHz |
| Height (Max) | 0.034 in |
| Insertion Loss | 1 dB |
| Mounting Type | Surface Mount |
| Package Name | 1206 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.121 in |
| Size / Dimension Width | 0.063 in |
